Q8R3CZZRYG24E

Active

APEM

LED PMI RECESSED GR/RD/YLW

Search across all available documentation for this part.

Active

APEM

LED PMI RECESSED GR/RD/YLW

Technical Specifications

Parameters and characteristics for this part

Specification	Q8R3CZZRYG24E

Current	20mA Green, 20mA Yellow, 20mA Red
Ingress Protection	IP67
Lamp Color	Green, Yellow, Red
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating [custom]	60 mcd
Millicandela Rating [custom]	13 mcd
Millicandela Rating [custom]	15 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Viewing Angle	100 °
Voltage	24V Yellow, 24V Green, 24V Red

Part	Lens Transparency	Type	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Viewing Angle	Panel Cutout Shape	Lens Size	Lens Size	Voltage	Termination Style	Lamp Color	Current	Ingress Protection	Ratings	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
APEM Q8R3CZZRYG24E	Diffused	LED	0.31 in	7.87 mm	100 °	Round	T-1 3/4	5 mm	24V Green 24V Red 24V Yellow	Wire Leads - 7.87" (200.00mm)	Green Red Yellow	20mA Green 20mA Red 20mA Yellow	IP67	DC	Round with Domed Top	60 mcd	13 mcd	15 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

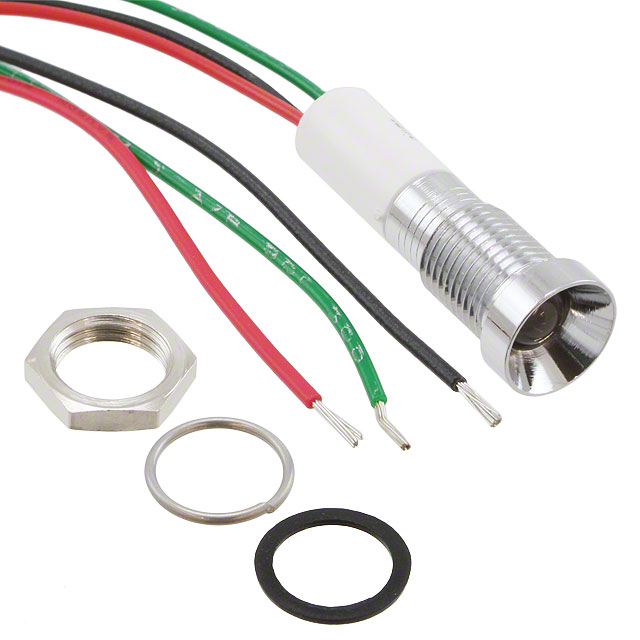

LED Panel Indicator Green, Red, Yellow Diffused 100° 24V Green, 24V Red, 24V Yellow 20mA Green, 20mA Red, 20mA Yellow Wire Leads - 7.87" (200.00mm)
