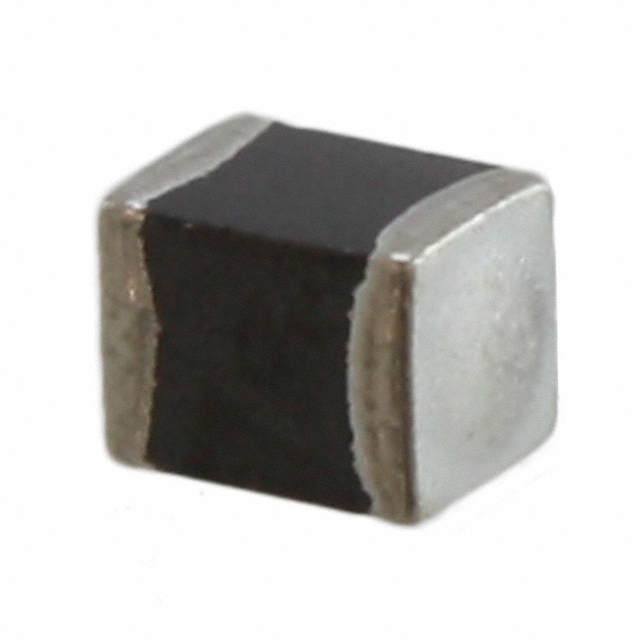

Z1210C202BPWZT
ObsoleteKEMET
FERRITE BEAD 2K OHM 1210 1LN
Deep-Dive with AI
Search across all available documentation for this part.
Z1210C202BPWZT
ObsoleteKEMET
FERRITE BEAD 2K OHM 1210 1LN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Z1210C202BPWZT |
|---|---|
| Current Rating (Max) [Max] | 1.2 A |
| DC Resistance (DCR) (Max) [Max] | 130 mOhm |
| Filter Type | Power Line |
| Height (Max) | 2.8 mm |
| Height (Max) [Max] | 0.11 in |
| Impedance @ Frequency | 2 kOhms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.70 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.24 | |||
Description
General part information
Z1210C Series
2 kOhms @ 100 MHz 1 Power Line Ferrite Bead 1210 (3225 Metric) 1.2A 130mOhm
