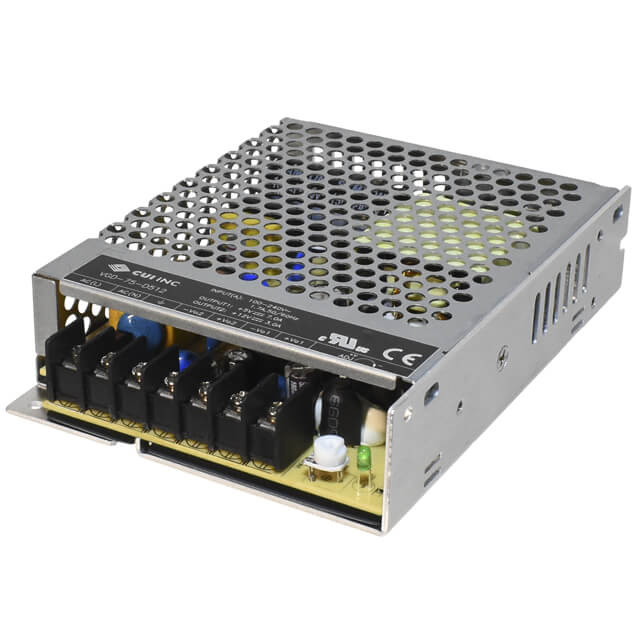

VGD-75-D524

CUI Inc.

AC/DC CONVERTER 5V 24V 73W

Search across all available documentation for this part.

CUI Inc.

AC/DC CONVERTER 5V 24V 73W

Technical Specifications

Parameters and characteristics for this part

Specification	VGD-75-D524

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB Scheme, UL, IEC
Current - Output 1	5 A
Current - Output 2	2 A
Efficiency	84 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	73 W
Size / Dimension [x]	122.5 mm
Size / Dimension [x]	4.82 "
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC, 373 VDC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	24 V

Part	Features	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Type	Mounting Type	Current - Output 1	Applications	Minimum Load Required	Number of Outputs	Voltage - Output 2	Standard Number	Current - Output 2	Power (Watts)	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Approval Agency
CUI Inc. VGD-75-D524	Adjustable Output Universal Input	264 VAC 373 VDC	90 VAC 120 VDC	84 %	Enclosed	Chassis Mount	5 A	Household Appliances ITE (Commercial)		2	24 V	62368-1	2 A	73 W	5 V	70 °C	-30 °C	3.82 in	30 mm	122.5 mm	1.18 in	4.82 "	97 mm	3000 V	CB Scheme IEC UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 5V 24V 90 ~ 264 VAC, 120 ~ 373 VDC Input
