C0747A.41.10

Active

Prysmian Group

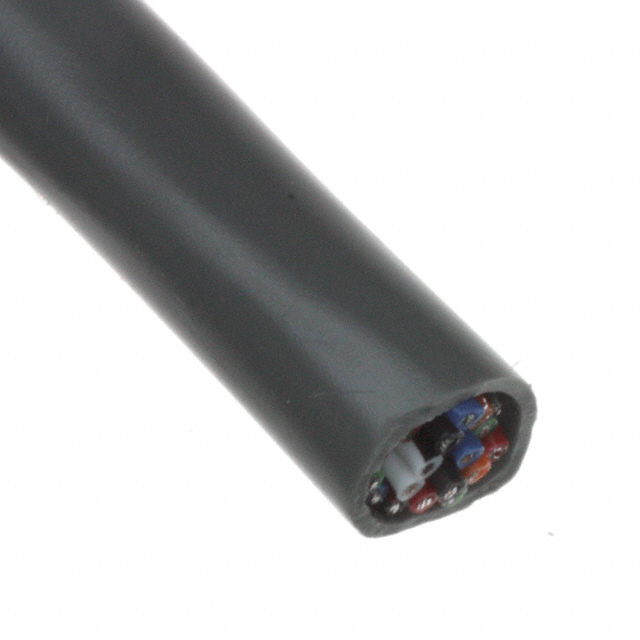

CABLE 20COND 24AWG GRAY SHLD 50'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 20COND 24AWG GRAY SHLD 50'

Technical Specifications

Parameters and characteristics for this part

Specification	C0747A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.303 in
Jacket (Insulation) Diameter [diameter]	7.7 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	50 ft
Number of Conductors	20
Operating Temperature [Max]	105 ░C, 80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket Color	Number of Conductors	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Shield Material	Voltage	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Shield Type	Cable Type	Shield Coverage	Wire Gauge	Features	Length [x]
Prysmian Group C0747A.41.10	Gray	20	1000 ft	15.24 m 304.8 m	0.303 in	7.7 mm	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	-20 C	80 C 105 ░C	UL Style 2464	Flexfoil®	300 V	Copper Tinned	32 AWG	7	Computer	Foil	Multi-Conductor	100 %	24 AWG	Drain Wire	50 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Conductor Multi-Conductor Cable Gray 24 AWG Foil 50.00' (15.24m)
