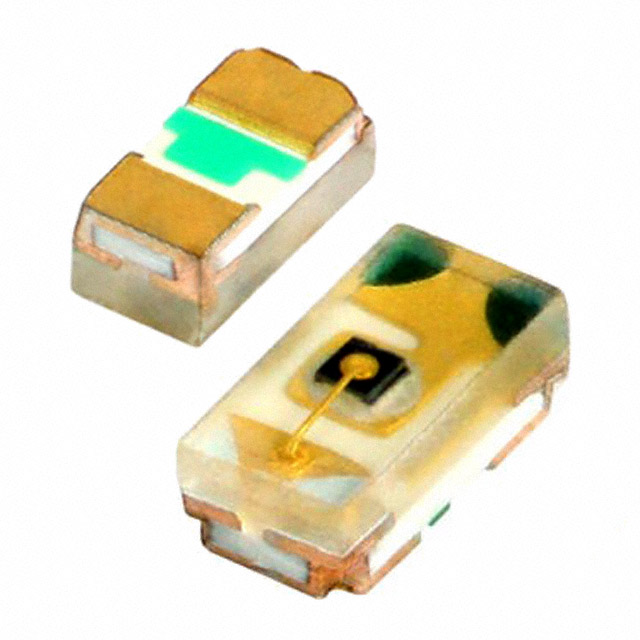

VLMTG1401-GS08
ActiveVishay General Semiconductor - Diodes Division
LED GREEN 0603 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VLMTG1401-GS08
ActiveVishay General Semiconductor - Diodes Division
LED GREEN 0603 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VLMTG1401-GS08 |
|---|---|
| Color | Green |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.65 mm |
| Lens Size [x] | 1.1 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 1400 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 146 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 518 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.17 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.49 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.17 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 3000 | $ 0.12 | ||
| 6000 | $ 0.11 | |||
| 15000 | $ 0.11 | |||
| 30000 | $ 0.10 | |||
| 75000 | $ 0.10 | |||
Description
General part information
VLMTG1401 Series
Green 525nm LED Indication - Discrete 2.8V 0603 (1608 Metric)
