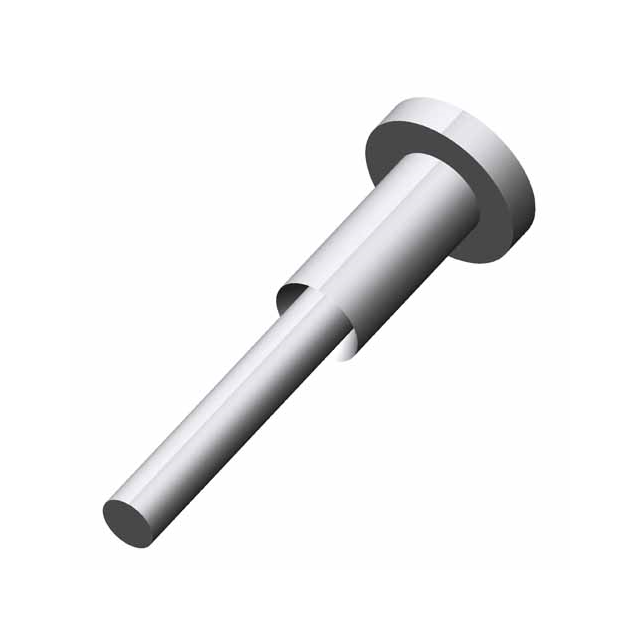

H2106B01

Active

Harwin Inc.

TERMINAL PIN ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

TERMINAL PIN ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H2106B01

Board Thickness	0.094 in
Board Thickness	2.39 mm
Contact Finish	Tin
Contact Material	Brass
Flange Diameter [diameter]	2.39 mm
Flange Diameter [diameter]	0.094 in
Insulation	Non-Insulated
Length - Below Flange [x]	0.285 in
Length - Below Flange [x]	7.24 mm
Mounting Hole Diameter [Max] [diameter]	0.056 in, 1.42 mm
Mounting Hole Diameter [Min] [diameter]	1.32 mm, 0.052 in
Mounting Type	Through Hole
Pin Size - Below Flange [diameter]	0.81 mm
Pin Size - Below Flange [diameter]	0.032 in
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Solder

Part	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Terminal Type	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Min] [diameter]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Insulation	Termination	Terminal Style	Mounting Type	Board Thickness	Board Thickness	Length - Overall [x]	Length - Overall [x]	Contact Material	Length - Below Flange [x]	Length - Below Flange [x]	Length - Above Flange [x]	Length - Above Flange [x]	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Length - Overall
Harwin Inc. H2106A01	0.81 mm	0.032 in	PC Pin	0.056 in 1.42 mm	0.052 in 1.32 mm	Tin	2.39 mm	0.094 in	Non-Insulated	Swage	Single End	Through Hole	0.094 in	2.39 mm	0.291 in	7.39 mm	Brass	2.92 mm	0.115 in	3.96 mm	0.156 in
Harwin Inc. H2106B01			PC Pin	0.056 in 1.42 mm	0.052 in 1.32 mm	Tin	2.39 mm	0.094 in	Non-Insulated	Solder	Single End	Through Hole	0.094 in	2.39 mm			Brass	7.24 mm	0.285 in			0.81 mm	0.032 in
Harwin Inc. H2106-01	0.81 mm	0.032 in	PC Pin	0.056 in 1.42 mm	0.052 in 1.32 mm	Tin	2.39 mm	0.094 in	Non-Insulated	Swage	Double End	Through Hole	0.094 in	2.39 mm	0.375 "		Brass	5.05 mm	0.199 in	3.96 mm	0.156 in			9.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20000	$ 0.17
Newark	Each	1000	$ 0.23

General part information

PC Pin Terminal Connector Through Hole Tin
