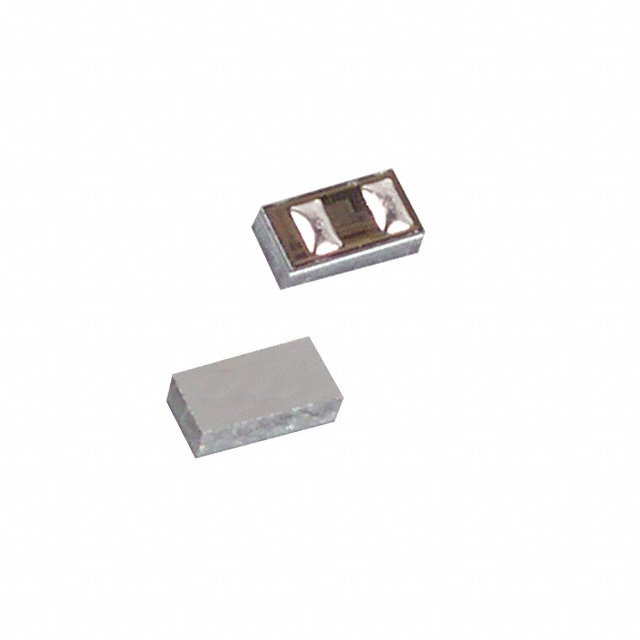

DS2433X-S#T

Obsolete

Analog Devices Inc./Maxim Integrated

IC EEPROM 4KBIT 1-WIRE 6FLIPCHIP

Deep-Dive with AI

Search across all available documentation for this part.

DS2433X-S#T

Obsolete

Analog Devices Inc./Maxim Integrated

IC EEPROM 4KBIT 1-WIRE 6FLIPCHIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS2433X-S#T

Access Time	2 µs
Memory Format	EEPROM
Memory Interface	1-Wire®
Memory Organization	256 x 16
Memory Size	4 Kbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	FCBGA, 6-VBGA
Supplier Device Package	6-FlipChip (2.82x2.54)
Technology	EEPROM

DS2433 Series

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Mounting Type	Memory Type	Access Time	Supplier Device Package	Memory Size	Memory Interface	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [y]	Package / Case	Package / Case [x]	Memory Organization
Analog Devices Inc./Maxim Integrated DS2433S-100-001+T	2.8 V	6 V	EEPROM	Surface Mount	Non-Volatile	2 µs	8-SOIC	4 Kbit	1-Wire®	EEPROM	85 °C	-40 °C	5.3 mm	8-SOIC	0.209 "	256 x 16
Analog Devices Inc./Maxim Integrated DS2433S/T&R			EEPROM	Surface Mount	Non-Volatile	2 µs	8-SOIC	4 Kbit	1-Wire®	EEPROM	85 °C	-40 °C	5.3 mm	8-SOIC	0.209 "	256 x 16
Analog Devices Inc./Maxim Integrated DS2433X-300-EC+			EEPROM	Surface Mount	Non-Volatile	2 µs	6-FlipChip (2.82x2.54)	4 Kbit	1-Wire®	EEPROM	85 °C	-40 °C		6-XBGA FCBGA		256 x 16
Analog Devices Inc./Maxim Integrated DS2433AX-S#T			EEPROM	Surface Mount	Non-Volatile	2 µs	6-FlipChip (2.82x2.54)	4 Kbit	1-Wire®	EEPROM	85 °C	-40 °C		6-XBGA FCBGA		256 x 16
Analog Devices Inc./Maxim Integrated DS2433AX-S+TW			EEPROM	Surface Mount	Non-Volatile	2 µs	6-FlipChip (2.82x2.54)	4 Kbit	1-Wire®	EEPROM	85 °C	-40 °C		6-XBGA FCBGA		256 x 16
Analog Devices Inc./Maxim Integrated DS2433+			EEPROM	Through Hole	Non-Volatile	2 µs	TO-92-3	4 Kbit	1-Wire®	EEPROM	85 °C	-40 °C		TO-226-3 TO-92-3 Long Body		256 x 16
Analog Devices Inc./Maxim Integrated DS2433X-S#T			EEPROM	Surface Mount	Non-Volatile	2 µs	6-FlipChip (2.82x2.54)	4 Kbit	1-Wire®	EEPROM	85 °C	-40 °C		6-VBGA FCBGA		256 x 16
Analog Devices Inc./Maxim Integrated DS2433X-S/T&R			EEPROM	Surface Mount	Non-Volatile	2 µs	6-FlipChip (2.82x2.54)	4 Kbit	1-Wire®	EEPROM	85 °C	-40 °C		6-VBGA FCBGA		256 x 16
Analog Devices Inc./Maxim Integrated DS2433D/T&R			EEPROM	Surface Mount	Non-Volatile	2 µs	6-FlipChip (2.82x2.54)	4 Kbit	1-Wire®	EEPROM	85 °C	-40 °C		6-VBGA FCBGA		256 x 16
Analog Devices Inc./Maxim Integrated DS2433X-300-EC#TW	2.8 V	6 V	EEPROM	Surface Mount	Non-Volatile	2 µs	6-FlipChip (2.82x2.54)	4 Kbit	1-Wire®	EEPROM	85 °C	-40 °C		6-XBGA FCBGA		256 x 16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DS2433 Series

EEPROM Memory IC 4Kbit 1-Wire® 2 µs 6-FlipChip (2.82x2.54)

Documents

Technical documentation and resources

No documents available
