360006-E01

Active

Qualtek

CORD IEC 884/EN50 075 - C7 6.56'

Search across all available documentation for this part.

Active

Qualtek

CORD IEC 884/EN50 075 - C7 6.56'

Technical Specifications

Parameters and characteristics for this part

Specification	360006-E01

1st Connector	IEC 884/EN50 075
2nd Connector	IEC 320-C7
Approval Agency Marking	ESTI, SEMKO, NF, VDE, CEBEC, IMQ, OVE, FIMKO, KEMA, NEMKO, DEMKO
Approved Countries	Netherlands, Germany, Finland, France, Switzerland, Austria, Denmark, Italy, Belgium, Sweden, Norway
Color	Black
Current Rating (Amps)	2.5 A
Length [x]	2 m
Length [x]	6.56 ft
Number of Conductors	2
Operating Temperature	70 °C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	250 VAC
Wire Gauge	18 AWG

Part	Operating Temperature	Style	Shielding	Current Rating (Amps)	2nd Connector	Voltage Rating	1st Connector	Approval Agency Marking	Number of Conductors	Color	Wire Gauge	Approved Countries	Length [x]	Length [x]
Qualtek 360006-E01	70 °C	Female Sockets Male Pins	Unshielded	2.5 A	IEC 320-C7	250 VAC	IEC 884/EN50 075	CEBEC DEMKO ESTI FIMKO IMQ KEMA NEMKO NF OVE SEMKO VDE	2	Black	18 AWG	Austria Belgium Denmark Finland France Germany Italy Netherlands Norway Sweden Switzerland	2 m	6.56 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

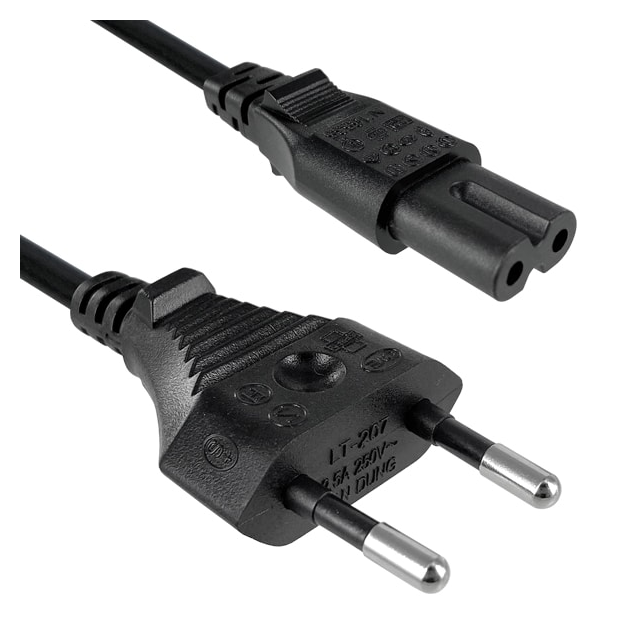

6.56' (2.00m) Power Cord Black IEC 884/EN50 075 To IEC 320-C7 H03VVH2-F
