H7PXH-0906M
ActiveAssmann WSW Components
CABLE D-SUB - HMM09H/AE09M/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H7PXH-0906M |
|---|---|
| 1st Connector | Plug, Male Pins |
| 2nd Connector | Individual Wire Leads |
| Color | Ribbon, Multiple |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Length | 6 ft |
| Length | 1.83 m |
| Number of Positions | 9 |
| Shielding | Unshielded |
| Type | DB9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.79 | |
| 10 | $ 4.35 | |||
| 25 | $ 4.12 | |||
| 50 | $ 4.03 | |||
| 100 | $ 3.83 | |||
| 250 | $ 3.36 | |||
| 500 | $ 3.26 | |||
| 1000 | $ 2.78 | |||
| 2500 | $ 2.59 | |||
Description
General part information
H7PXH-09 Series

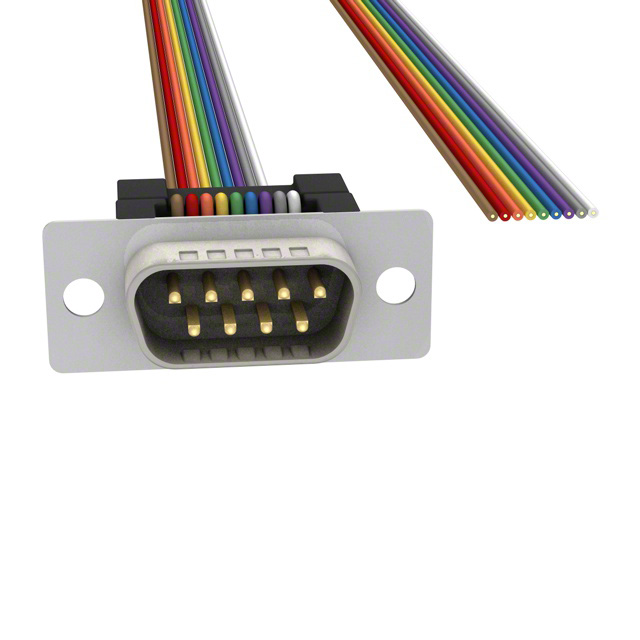

D-Sub Cable Assembly DB9 Multiple, Ribbon 6.00' (1.83m) Plug, Male Pins to Individual Wire Leads Unshielded
