355-054-521-208
ActiveEDAC Inc.
HEADERS AND EDGE TYPE CONNECTOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
355-054-521-208
ActiveEDAC Inc.
HEADERS AND EDGE TYPE CONNECTOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 355-054-521-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 54 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
355-054 Series
| Part | Number of Rows | Color | Gender | Card Type | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Termination | Mounting Type | Contact Finish | Contact Type | Number of Positions/Bay/Row [custom] | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Number of Positions | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Black | Female | Non Specified - Dual Edge | Dual | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Solder | Panel Mount Through Hole | Gold | Semi Bellows | 27 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 54 | Copper Alloy | |
EDAC Inc. | 2 | Black | Female | Non Specified - Dual Edge | Dual | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Solder | Panel Mount Through Hole | Gold | Semi Bellows | 27 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 54 | Copper Alloy | |||
EDAC Inc. | 2 | Black | Female | Non Specified - Dual Edge | Dual | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Solder | Board Edge Straddle Mount | Gold | Semi Bellows | 27 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 54 | Copper Alloy | |||
EDAC Inc. | 2 | Black | Female | Non Specified - Dual Edge | Dual | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Solder Eyelet(s) | Gold | Semi Bellows | 27 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 54 | Copper Alloy | ||
EDAC Inc. | 2 | Black | Female | Non Specified - Dual Edge | Dual | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Solder | Board Edge Straddle Mount | Gold | Semi Bellows | 27 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 54 | Copper Alloy | |||
EDAC Inc. | 2 | Black | Female | Non Specified - Dual Edge | Dual | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Solder | Board Edge Straddle Mount | Gold | Semi Bellows | 27 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 54 | Copper Alloy | Card Extender | ||
EDAC Inc. | 2 | Black | Female | Non Specified - Dual Edge | Dual | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Solder | Panel Mount Through Hole | Gold | Semi Bellows | 27 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 54 | Copper Alloy | |||
EDAC Inc. | 2 | Black | Female | Non Specified - Dual Edge | Dual | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Solder | Board Edge Straddle Mount | Gold | Semi Bellows | 27 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 54 | Copper Alloy | Card Extender |
EDAC Inc. | 2 | Black | Female | Non Specified - Dual Edge | Dual | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Solder | Panel Mount Through Hole | Gold | Semi Bellows | 27 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 54 | Copper Alloy | |||
EDAC Inc. | 2 | Black | Female | Non Specified - Dual Edge | Dual | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Solder | Panel Mount Through Hole | Gold | Semi Bellows | 27 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 54 | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
355-054 Series

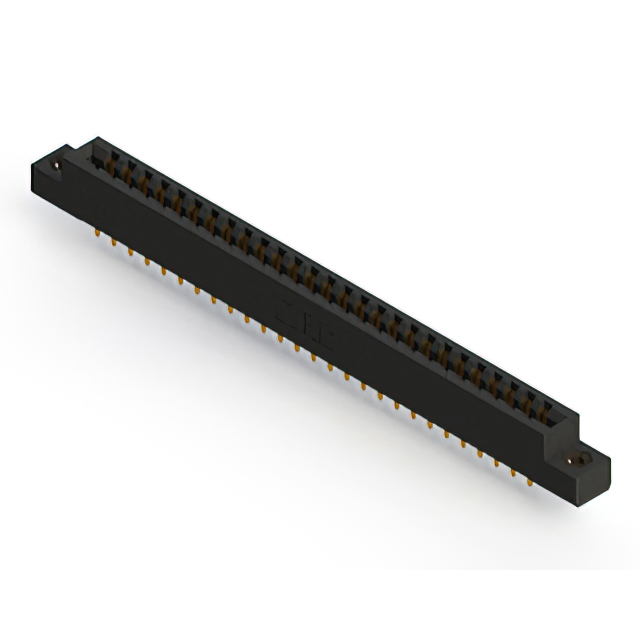

54 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
