SG-9101CA 25.0000M-C10PHAAAB

Active

EPSON

SG-9101CA 25.0000M-C10PHAAAB: MH

Search across all available documentation for this part.

Active

EPSON

SG-9101CA 25.0000M-C10PHAAAB: MH

Technical Specifications

Parameters and characteristics for this part

Specification	SG-9101CA 25.0000M-C10PHAAAB

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	3.7 mA
Current - Supply (Max)	7 mA
Frequency	25 MHz
Frequency Stability	50 ppm
Function	Enable/Disable
Height - Seated (Max) [Max]	1.4 mm
Height - Seated (Max) [Max]	0.055 in
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output	CMOS

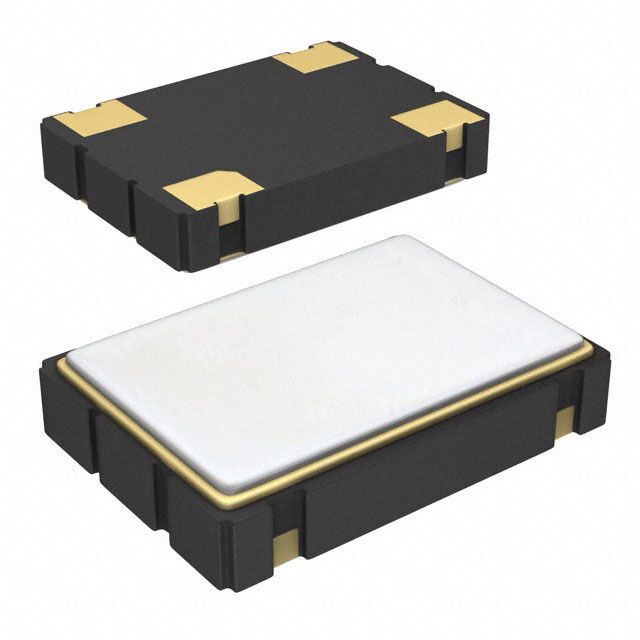

Package / Case	4-SMD, No Lead
Size / Dimension [x]	7 mm
Size / Dimension [x]	0.276 "
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Spread Spectrum Bandwidth	1 %
Supplier Device Package	4-SMD (7x5)
Type	XO (Standard)
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	1.62 V

Part	Package / Case	Mounting Type	Current - Supply (Max)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Output	Function	Frequency Stability	Current - Supply (Disable) (Max) [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Spread Spectrum Bandwidth	Base Resonator
EPSON SG-9101CA 25.0000M-C10PHAAAB	4-SMD No Lead	Surface Mount	7 mA	7 mm	5 mm	0.276 "	0.197 "	25 MHz	4-SMD (7x5)	3.63 V	1.62 V	1.4 mm	0.055 in	CMOS	Enable/Disable	50 ppm	3.7 mA	XO (Standard)	-40 °C	105 ░C	1 %	Crystal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.94

General part information

25 MHz XO (Standard) CMOS Oscillator 1.62V ~ 3.63V Enable/Disable 4-SMD, No Lead
