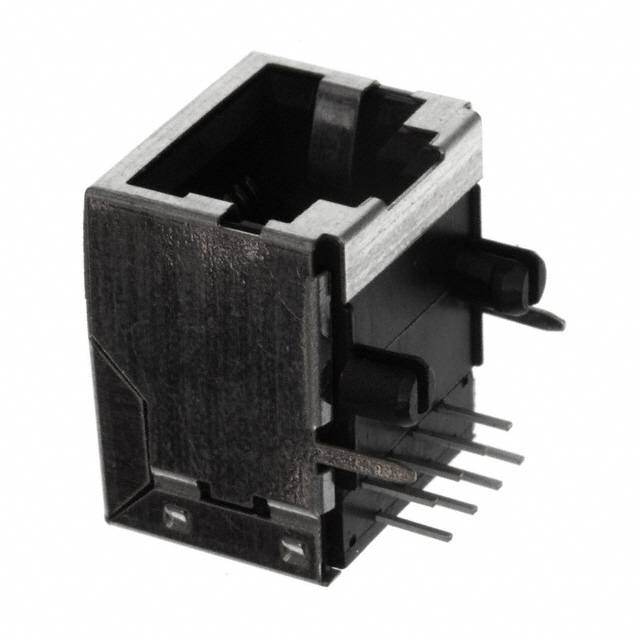

SS-640810S-A-NF-A111 - SS-640810S-A-NF-A111

SS-640810S-A-NF-A111

Active
BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN
SS-640810S-A-NF-A111 - SS-640810S-A-NF-A111

SS-640810S-A-NF-A111

Active
BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsProduct Change Notice EN

Technical Specifications

Parameters and characteristics for this part

SpecificationSS-640810S-A-NF-A111
Connector TypeJack
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact MaterialCopper Alloy
Housing MaterialThermoplastic
LED ColorDoes Not Contain LED
Mounting TypeThrough Hole
Number of Ports1
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Number of Rows1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Orientation90 °
ShieldingShielded
Tab DirectionDown
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 2.61
10$ 2.27
25$ 2.18
40$ 2.13
80$ 2.03
240$ 1.84
480$ 1.69
960$ 1.45
2400$ 1.35

Description

General part information

SS-640810 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet
