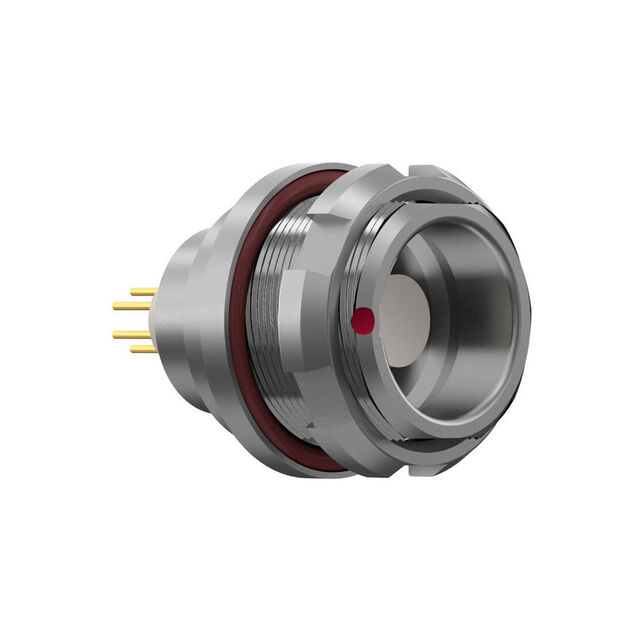

G32K0C-P19NFG0-0000

Active

ODU

ODU MINI-SNAP RECEPT, STY 3, SZ

Deep-Dive with AI

Search across all available documentation for this part.

G32K0C-P19NFG0-0000

Active

ODU

ODU MINI-SNAP RECEPT, STY 3, SZ

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G32K0C-P19NFG0-0000

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	19
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	2
Shielding	Shielded
Termination	Crimp
Voltage Rating	300 VDC

G32K0C-P Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage Rating	Contact Finish - Mating	Mounting Feature	Shell Size - Insert	Applications	Number of Positions	Color	Current Rating (Amps)	Connector Type	Insert Material	Primary Material	Ingress Protection	Shell Material	Shell Finish	Fastening Type	Contact Material	Shielding	Termination	Mounting Type
ODU G32K0C-P07LPH0-0000	-40 °C	120 °C	Ground	600 V	Gold	Bulkhead - Front Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	7	Silver	12 A	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	IP68 - Dust Tight Waterproof	Brass	Chrome over Nickel	Push-Pull	Brass	Shielded
ODU G32K0C-P19NFG0-0000	-40 °C	120 °C	Ground	300 VDC	Gold	Bulkhead - Front Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	19	Silver	7.5 A	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	IP68 - Dust Tight Waterproof	Brass	Chrome over Nickel	Push-Pull	Brass	Shielded	Crimp
ODU G32K0C-P07NPL0-0000	-40 °C	120 °C	Ground	366 V	Gold	Bulkhead - Front Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	7	Silver	15 A	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	IP68 - Dust Tight Waterproof	Brass	Chrome over Nickel	Push-Pull	Brass	Shielded	Crimp
ODU G32K0C-P12QF00-0000	-40 °C	120 °C	Ground	450 V	Gold	Bulkhead - Front Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	12	Silver	6 A	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	IP68 - Dust Tight Waterproof	Brass	Chrome over Nickel	Push-Pull	Brass	Shielded	Solder	Panel Mount Through Hole
ODU G32K0C-P10LJG0-0000	-40 °C	120 °C	Ground	500 V	Gold	Bulkhead - Front Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	10	Silver	7.5 A	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	IP68 - Dust Tight Waterproof	Brass	Chrome over Nickel	Push-Pull	Brass	Shielded
ODU G32K0C-P03LSN0-0000	-40 °C	120 °C	Ground	800 V	Gold	Bulkhead - Front Side Nut	2	Industrial Medical Military Testing Equipment & Measurement		Silver	16 A	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	IP68 - Dust Tight Waterproof	Brass	Chrome over Nickel	Push-Pull	Brass	Shielded
ODU G32K0C-P05LPN0-0000	-40 °C	120 °C	Ground	500 V	Gold	Bulkhead - Front Side Nut	2	Industrial Medical Military Testing Equipment & Measurement		Silver	15 A	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	IP68 - Dust Tight Waterproof	Brass	Chrome over Nickel	Push-Pull	Brass	Shielded
ODU G32K0C-P02LTS0-0000	-40 °C	120 °C	Ground	600 V	Gold	Bulkhead - Front Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	2	Silver	24 A	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	IP68 - Dust Tight Waterproof	Brass	Chrome over Nickel	Push-Pull	Brass	Shielded
ODU G32K0C-P14NFG0-0000	-40 °C	120 °C	Ground	366 V	Gold	Bulkhead - Front Side Nut	2	Industrial Medical Military Testing Equipment & Measurement	14	Silver	7.5 A	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	IP68 - Dust Tight Waterproof	Brass	Chrome over Nickel	Push-Pull	Brass	Shielded	Crimp
ODU G32K0C-P19QF00-A000	-40 °C	120 °C			Gold	Bulkhead - Front Side Nut	2		19	Silver	6 A	Receptacle Female Sockets		Metal	IP68 - Dust Tight Waterproof	Brass	Chrome	Detent Lock Push-Pull		Shielded	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 126.73

Description

General part information

G32K0C-P Series

19 Position Circular Connector Receptacle, Female Sockets Crimp
