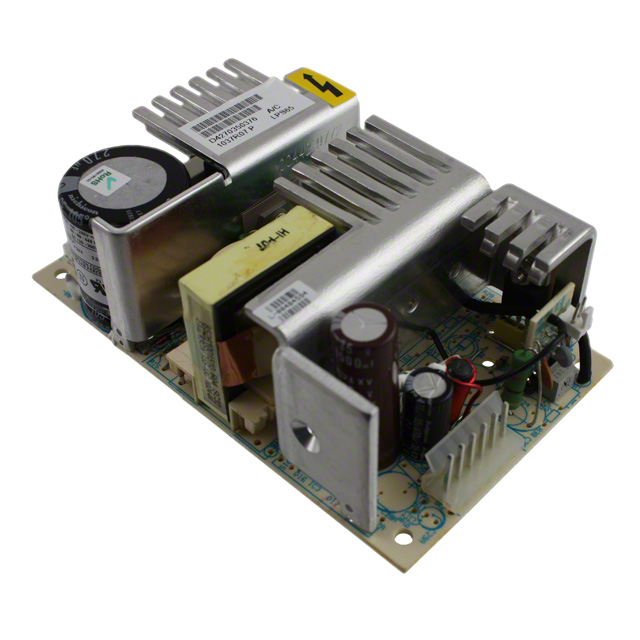

LPS64-M

Obsolete

ARTESYN / Advanced Energy

AC/DC CONVERTER 15V 60W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

AC/DC CONVERTER 15V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	LPS64-M

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	4 A
Efficiency	70 %
Features	Remote Sense, Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	80 W
Power (Watts)	60 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	42.9 mm
Size / Dimension [z]	1.69 in
Type	Open Frame
Voltage - Output 1	15 V

Part	Approval Agency	Mounting Type	Features	Type	Power (Watts)	Power (Watts)	Efficiency	Current - Output 1	Voltage - Output 1	Minimum Load Required	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs
ARTESYN / Advanced Energy LPS64-M	CE	Chassis Mount	Adjustable Output DC Input Capable Remote Sense Universal Input	Open Frame	80 W	60 W	70 %	4 A	15 V		ITE (Commercial)	5 in	127 mm	3 "	76.2 mm	42.9 mm	1.69 in	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
