345-072-520-804

Active

EDAC Inc.

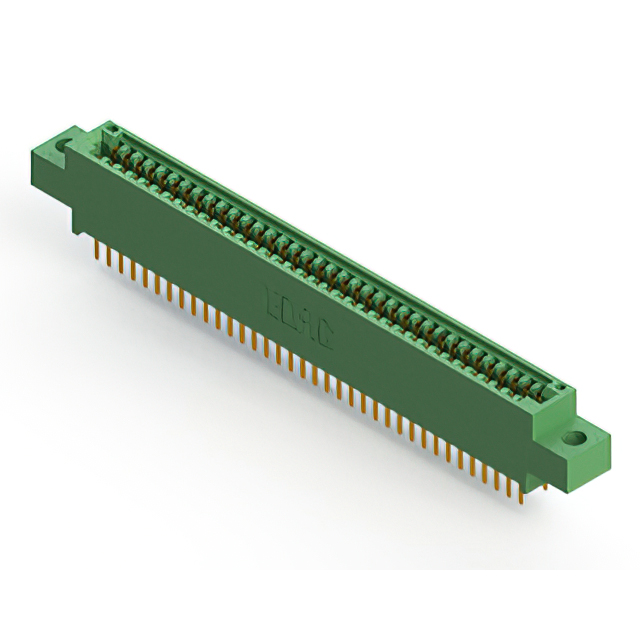

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Solutions Brochure Datasheet +2

345-072-520-804

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsInterconnect Solutions Brochure Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-072-520-804

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	72
Number of Positions/Bay/Row [custom]	36
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

345-072 Series

...

Part	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Number of Positions/Bay/Row [custom]	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Read Out	Contact Finish	Contact Type	Card Type	Gender	Flange Feature	Pitch [x]	Pitch [x]	Termination Rows	Material - Insulation	Features	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-072-544-607	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	72	Through Hole	Wire Wrap	10 Áin	0.25 Ám	1	-40 °C	105 ░C	Copper Alloy	Single	Gold	Cantilever	Non Specified - Single Edge	Female	M3 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	1	Polyester Thermoplastic
EDAC Inc. 345-072-521-288	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green		Through Hole	Solder	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Copper Alloy	Dual	Gold	Cantilever	Non Specified - Dual Edge	Female	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	2	Polyester Thermoplastic	Card Guides	36
EDAC Inc. 345-072-558-403	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	72	Through Hole Right Angle	Solder	10 Áin	0.25 Ám	1	-40 °C	105 ░C	Copper Alloy	Single	Gold	Cantilever	Non Specified - Single Edge	Female	Floating Bobbin Top Mount Opening	2.54 mm	0.1 in	1	Polyester Thermoplastic			2.95 mm	0.116 in
EDAC Inc. 345-072-524-408	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	72	Through Hole	Solder	10 Áin	0.25 Ám	1	-40 °C	105 ░C	Copper Alloy	Single	Gold	Cantilever	Non Specified - Single Edge	Female	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	1	Polyester Thermoplastic
EDAC Inc. 345-072-521-102	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	72	Through Hole	Solder	10 Áin	0.25 Ám	1	-40 °C	105 ░C	Copper Alloy	Single	Gold	Cantilever	Non Specified - Single Edge	Female	Flush Mount Top Opening Unthreaded	2.54 mm	0.1 in	1	Polyester Thermoplastic			3.25 mm	0.128 "
EDAC Inc. 345-072-544-878	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green		Through Hole	Wire Wrap	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Copper Alloy	Dual	Gold	Cantilever	Non Specified - Dual Edge	Female	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	2	Polyester Thermoplastic	Card Guides	36
EDAC Inc. 345-072-520-804	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green		Through Hole	Solder	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Copper Alloy	Dual	Gold	Cantilever	Non Specified - Dual Edge	Female	Top Mount Opening Unthreaded	2.54 mm	0.1 in	2	Polyester Thermoplastic		36	3.96 mm	0.156 in
EDAC Inc. 345-072-542-208	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green		Through Hole	Wire Wrap	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Copper Alloy	Dual	Gold	Cantilever	Non Specified - Dual Edge	Female	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	2	Polyester Thermoplastic		36
EDAC Inc. 345-072-542-478	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	72	Through Hole	Wire Wrap	10 Áin	0.25 Ám	1	-40 °C	105 ░C	Copper Alloy	Single	Gold	Cantilever	Non Specified - Single Edge	Female	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	1	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-072-560-203	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green		Board Edge Straddle Mount	Solder	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Copper Alloy	Dual	Gold	Cantilever	Non Specified - Dual Edge	Female	Floating Bobbin Flush Mount	2.54 mm	0.1 in	2	Polyester Thermoplastic	Card Extender	36	2.95 mm	0.116 in
