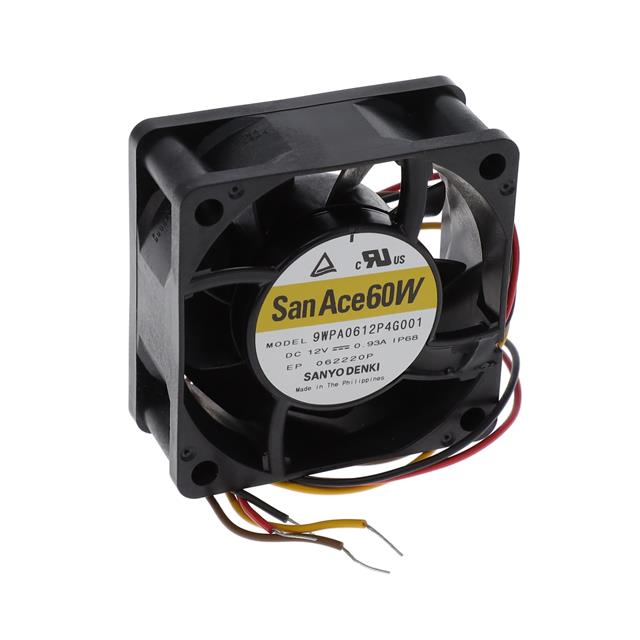

9WPA0612P4G001

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9WPA0612P4G001

Air Flow	1.5 m³/min
Air Flow	53.7 CFM
Bearing Type	Ball
Current Rating (Amps)	930 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	56 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	11.16 W
RPM	12000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	1.44 in H2O
Static Pressure	358.7 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Width [y]	25 mm

Part	Width [y]	Bearing Type	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Ingress Protection	Current Rating (Amps)	Air Flow	Air Flow	Power (Watts)	Noise	Fan Type	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Features	RPM	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Termination	Weight	Weight	Air Flow
Sanyo Denki America Inc. 9WPA0612P4G0011	25 mm	Ball	Plastic	-20 °C	70 °C	-20 C	70 °C	40000 Hrs	IP68 - Dust Tight Waterproof	930 mA	1.5 m³/min	53.7 CFM	11.16 W	56 dB	Tubeaxial	1.44 in H2O	358.7 Pa	13.2 VDC	10.8 VDC	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12000 RPM	60 mm	60 mm	12 VDC	4 Wire Leads
Sanyo Denki America Inc. 9WPA0612P4G001	25 mm	Ball	Plastic	-20 °C	70 °C	-20 C	70 °C	40000 Hrs	IP68 - Dust Tight Waterproof	930 mA	1.5 m³/min	53.7 CFM	11.16 W	56 dB	Tubeaxial	1.44 in H2O	358.7 Pa	13.2 VDC	10.8 VDC	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12000 RPM	60 mm	60 mm	12 VDC	4 Wire Leads
Sanyo Denki America Inc. 9WPA0612P4G003	25 mm	Ball	Plastic	-20 °C	70 °C	-20 C	70 °C	40000 Hrs	IP68 - Dust Tight Waterproof	0.09 A		0.428 m³/min		22 dB(A)	Tubeaxial	0.12 in H2O	29.9 Pa	13.2 VDC	10.8 VDC	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	3500 RPM	60 mm	60 mm	12 VDC	4 Position Rectangular Connector	0.243 lb	110.22 g	15.3 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 53.7 CFM (1.50m³/min) 4 Wire Leads
