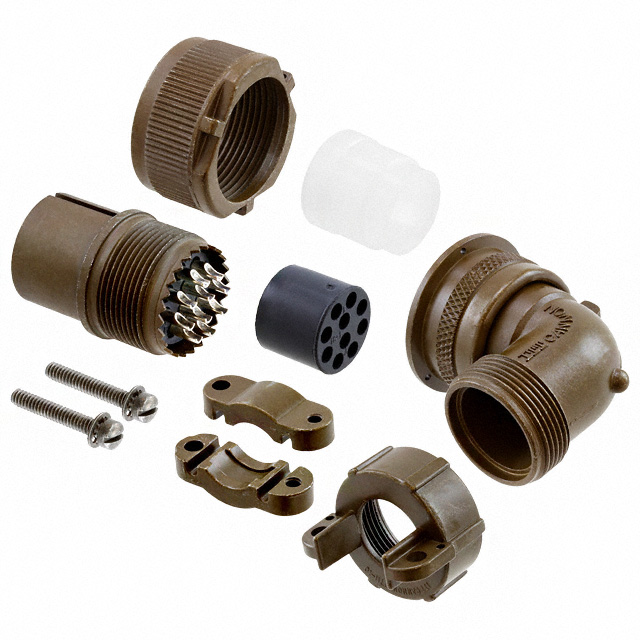

MS3108E18-1S

Active

ITT Cannon, LLC

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

MS3108E18-1S

Active

ITT Cannon, LLC

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108E18-1S

Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	1
Shell Size - Insert [Min]	18
Voltage Rating	250 VDC, 200 VAC

MS3108E18 Series

Part	Color	Shell Finish	Shell Material	Voltage Rating	Orientation	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Shell Size - Insert	Mounting Type	Current Rating (Amps)	Primary Material	Number of Positions	Features	Ingress Protection	Qualification	Shell Size - Insert [Max]	Shell Size - Insert [Min]
ITT Cannon, LLC MS3108E18-4SZ	Olive Drab	Olive Drab Cadmium	Aluminum Alloy	900 VAC 1250 VDC	Z	Military	-55 °C	125 °C	Female Sockets Plug	Silver	18-4	Free Hanging (In-Line) Right Angle	22 A	Metal	4	Cable Clamp Coupling Nut	Environment Resistant	MIL-DTL-5015
ITT Cannon, LLC MS3108E18-1SF187	Olive Drab	Olive Drab Cadmium	Aluminum Alloy	200 VAC 250 VDC	N	Military	-55 °C	125 °C	Female Sockets Plug	Silver		Free Hanging (In-Line) Right Angle	22 A	Metal	10	Cable Clamp Coupling Nut	Environment Resistant	MIL-DTL-5015	1	18
ITT Cannon, LLC MS3108E18-1S	Olive Drab	Olive Drab Cadmium	Aluminum Alloy	200 VAC 250 VDC	N	Military	-55 °C	125 °C	Female Sockets Plug	Silver		Free Hanging (In-Line) Right Angle	22 A	Metal	10	Cable Clamp Coupling Nut	Environment Resistant	MIL-DTL-5015	1	18
ITT Cannon, LLC MS3108E18-8S	Olive Drab	Olive Drab Cadmium	Aluminum Alloy	500 VAC 700 VDC	N	Military	-55 °C	125 °C	Female Sockets Plug	Silver	18-8	Free Hanging (In-Line) Right Angle	22 A 41 A	Metal	8	Cable Clamp Coupling Nut	Environment Resistant	MIL-DTL-5015
ITT Cannon, LLC MS3108E18-11P	Olive Drab	Olive Drab Cadmium	Aluminum Alloy	500 VAC 700 VDC	N	Military	-55 °C	125 °C	Male Pins Plug	Silver	18-11	Free Hanging (In-Line) Right Angle	41 A	Metal		Cable Clamp Coupling Nut	Environment Resistant	MIL-DTL-5015
ITT Cannon, LLC MS3108E18-4SWF187	Olive Drab	Olive Drab Cadmium	Aluminum Alloy	900 VAC 1250 VDC	W	Military	-55 °C	125 °C	Female Sockets Plug	Silver	18-4	Free Hanging (In-Line) Right Angle	22 A	Metal	4	Cable Clamp Coupling Nut	Environment Resistant	MIL-DTL-5015
ITT Cannon, LLC MS3108E18-19S	Olive Drab	Olive Drab Cadmium	Aluminum Alloy	500 VAC 700 VDC	N	Military	-55 °C	125 °C	Female Sockets Plug	Silver		Free Hanging (In-Line) Right Angle	22 A	Metal	10	Cable Clamp Coupling Nut	Environment Resistant	MIL-DTL-5015	19	18
ITT Cannon, LLC MS3108E18-4SW	Olive Drab	Olive Drab Cadmium	Aluminum Alloy	900 VAC 1250 VDC	W	Military	-55 °C	125 °C	Female Sockets Plug	Silver	18-4	Free Hanging (In-Line) Right Angle	22 A	Metal	4	Cable Clamp Coupling Nut	Environment Resistant	MIL-DTL-5015

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.01
		10	$ 35.91
		25	$ 34.36
		50	$ 85.57
		50	$ 33.25
		100	$ 32.15
		250	$ 30.37
LCSC	Piece	1	$ 53.52
		200	$ 21.36
		500	$ 20.64
		1000	$ 20.29

Description

General part information

MS3108E18 Series

10 Position Circular Connector Plug, Female Sockets Solder Cup
