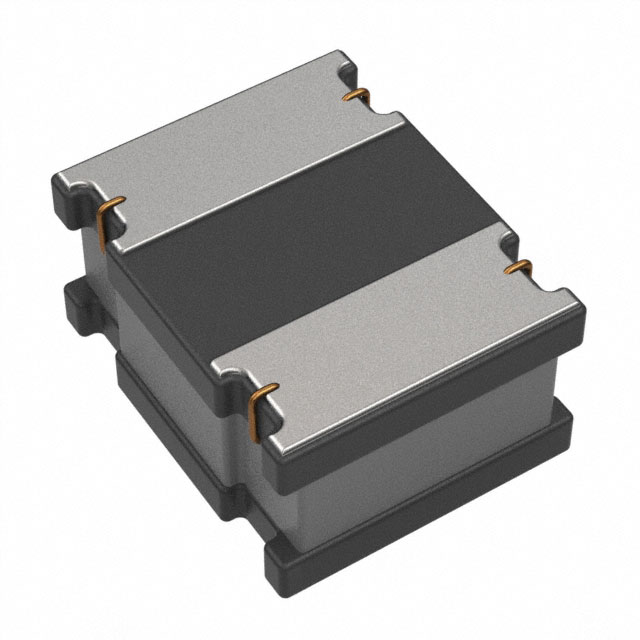

SDEM20161T-R47MS

Active

Delta Electronics/Cyntec

FIXED IND 470NH 3A 0.041OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

SDEM20161T-R47MS

Active

Delta Electronics/Cyntec

FIXED IND 470NH 3A 0.041OHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDEM20161T-R47MS

Current - Saturation (Isat)	3.9 A
Current Rating (Amps)	3 A
DC Resistance (DCR) [Max]	41 mOhm
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Inductance	470 nH
Inductance Frequency - Test	1 MHz
Material - Core	Metal
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0806 (2016 Metric)
Shielding	Shielded
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	2016
Tolerance	20 %

SDEM20161T Series

Part	Current Rating (Amps)	Mounting Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Current - Saturation (Isat)	Tolerance	Inductance Frequency - Test	Supplier Device Package	Material - Core	DC Resistance (DCR)
Delta Electronics/Cyntec SDEM20161T-R68MS	2.8 A	Surface Mount	0806 (2016 Metric)	2 mm	0.063 in	1.6 mm	0.079 in	55 mOhm	0.68 µH	0.039 "	1 mm	-55 °C	125 °C	Shielded	3.3 A	20 %	1 MHz	2016	Metal
Delta Electronics/Cyntec SDEM20161T-6R8MS	0.72 A	Surface Mount	0806 (2016 Metric)	2 mm	0.063 in	1.6 mm	0.079 in	639 mOhm	6.8 µH	0.039 "	1 mm	-55 °C	125 °C	Shielded	1.05 A	20 %	1 MHz	2016	Metal
Delta Electronics/Cyntec SDEM20161T-R47MS	3 A	Surface Mount	0806 (2016 Metric)	2 mm	0.063 in	1.6 mm	0.079 in	41 mOhm	470 nH	0.039 "	1 mm	-55 °C	125 °C	Shielded	3.9 A	20 %	1 MHz	2016	Metal
Delta Electronics/Cyntec SDEM20161T-1R0MS	2.4 A	Surface Mount	0806 (2016 Metric)	2 mm	0.063 in	1.6 mm	0.079 in	72 mOhm	1 µH	0.039 "	1 mm	-55 °C	125 °C	Shielded	2.7 A	20 %	1 MHz	2016	Metal
Delta Electronics/Cyntec SDEM20161T-1R5MS	2.16 A	Surface Mount	0806 (2016 Metric)	2 mm	0.063 in	1.6 mm	0.079 in		1.5 µH	0.039 "	1 mm	-55 °C	125 °C	Shielded	2.43 A	20 %	1 MHz	2016	Metal	120 mOhm
Delta Electronics/Cyntec SDEM20161T-2R2MS	1.6 A	Surface Mount	0806 (2016 Metric)	2 mm	0.063 in	1.6 mm	0.079 in	159 mOhm	2.2 µH	0.039 "	1 mm	-55 °C	125 °C	Shielded	1.7 A	20 %	1 MHz	2016	Metal
Delta Electronics/Cyntec SDEM20161T-100MS	0.63 A	Surface Mount	0806 (2016 Metric)	2 mm	0.063 in	1.6 mm	0.079 in	1.01 Ohm	10 µH	0.039 "	1 mm	-55 °C	125 °C	Shielded	720 mA	20 %	1 MHz	2016	Metal
Delta Electronics/Cyntec SDEM20161T-R24MS	4.5 A	Surface Mount	0806 (2016 Metric)	2 mm	0.063 in	1.6 mm	0.079 in	24 mOhm	240 nH	0.039 "	1 mm	-55 °C	125 °C	Shielded	5.5 A	20 %	1 MHz	2016	Metal
Delta Electronics/Cyntec SDEM20161T-3R3MS	1.08 A	Surface Mount	0806 (2016 Metric)	2 mm	0.063 in	1.6 mm	0.079 in	306 mOhm	3.3 µH	0.039 "	1 mm	-55 °C	125 °C	Shielded	1.35 A	20 %	1 MHz	2016	Metal
