HSMF-C145
ActiveBroadcom Limited

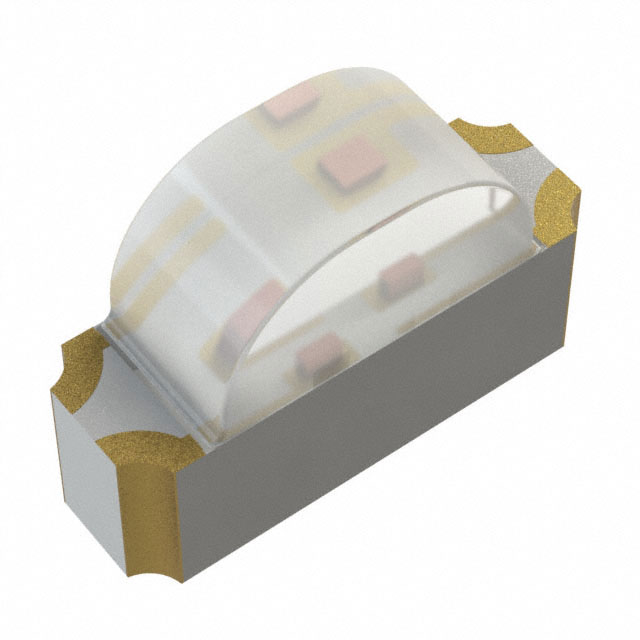

LED GREEN/RED CLEAR SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMF-C145
ActiveBroadcom Limited
LED GREEN/RED CLEAR SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMF-C145 |
|---|---|
| Color | Red, Green |
| Configuration | Common Anode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 1.1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 79 mcd |
| Millicandela Rating [custom] | 223 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 4-SMD |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.4 V |
| Wavelength - Dominant | 632 nm, 523 nm |
| Wavelength - Peak | 517 nm, 644 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.85 | |
| 10 | $ 1.18 | |||
| 100 | $ 0.84 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.66 | |||
| Digi-Reel® | 1 | $ 1.85 | ||
| 10 | $ 1.18 | |||
| 100 | $ 0.84 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.66 | |||
| Tape & Reel (TR) | 3000 | $ 0.61 | ||
| 6000 | $ 0.59 | |||
| 9000 | $ 0.58 | |||
| 15000 | $ 0.56 | |||
Description
General part information
HSMF-C145 Series
Green, Red 523nm Green, 632nm Red LED Indication - Discrete 3.4V Green, 2V Red 4-SMD
