X1005247-GNA1SA10A1
ActiveKyocera AVX
GNSS ACTIVE ANTENNA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X1005247-GNA1SA10A1
ActiveKyocera AVX
GNSS ACTIVE ANTENNA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X1005247-GNA1SA10A1 |
|---|---|
| Antenna Type | Module |
| Applications | GNSS |
| Features | LNA, Cable - 1m |
| Frequency (Center/Band) | 1.575 GHz, 1.602 GHz, 1.561 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Gain | 2 dBic, 4.1 dBi |
| Height (Max) | 14.5 mm |
| Height (Max) [Max] | 0.571 in |
| Ingress Protection | IPX7 |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| RF Family/Standard | Navigation |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.63 | |
| 10 | $ 17.12 | |||
| 25 | $ 16.41 | |||
| 160 | $ 14.46 | |||
| 320 | $ 13.75 | |||
| 640 | $ 12.86 | |||
Description
General part information
X1005247 Series

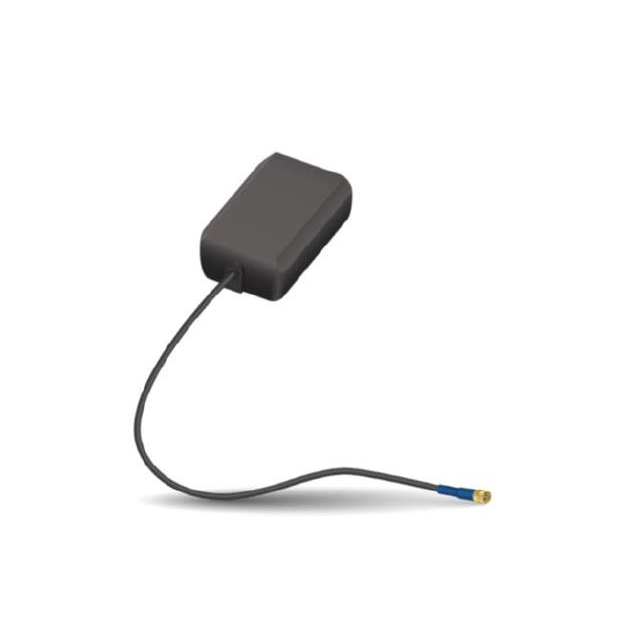

RF ANTENNA GNSS Module SMA Male Adhesive
