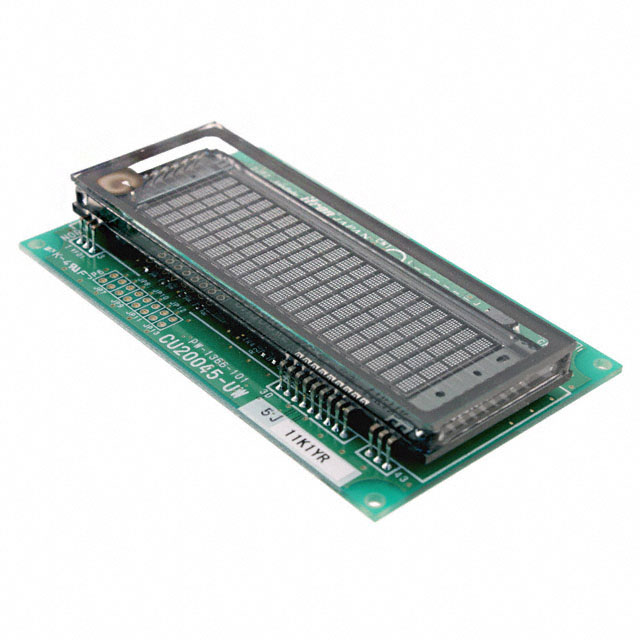

CU20045-UW5J
ActiveNoritake U.S.A., Inc.
DOT MATRIX VACUUM FLUORESCENT CHARACTER DISPLAY MODULE,
Deep-Dive with AI
Search across all available documentation for this part.
CU20045-UW5J
ActiveNoritake U.S.A., Inc.
DOT MATRIX VACUUM FLUORESCENT CHARACTER DISPLAY MODULE,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CU20045-UW5J |
|---|---|
| Character Size [y] | 2.4 mm |
| Character Size [z] | 4.7 mm |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 98 mm |
| Outline L x W x H [y] | 60 mm |
| Outline L x W x H [z] | 17 mm |
| Viewing Area [x] | 70.8 mm |
| Viewing Area [y] | 20.9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 134.63 | |
| 10 | $ 125.30 | |||
| 80 | $ 122.84 | |||
Description
General part information
CU20045 Series
Vacuum Fluorescent Display (VFD) 20 x 4 Character 5V 98.00mm x 60.00mm x 17.00mm
Documents
Technical documentation and resources
