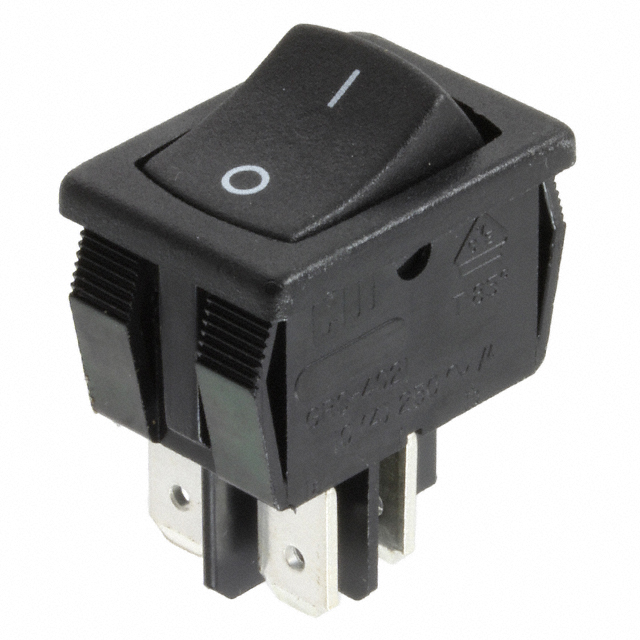

GRSV-4021-0006
ActiveCW Industries
SWITCH ROCKER DPST 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GRSV-4021-0006 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A, 10 A |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions | Rectangular |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.33 | |
| 10 | $ 1.19 | |||
| 25 | $ 1.13 | |||
| 50 | $ 1.07 | |||
| 100 | $ 1.03 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.95 | |||
Description
General part information
GRSV-4021 Series
Rocker Switch DPST 16A (AC), 10A (DC) 125 V Panel Mount, Snap-In
