100040C0

Active

LAPP

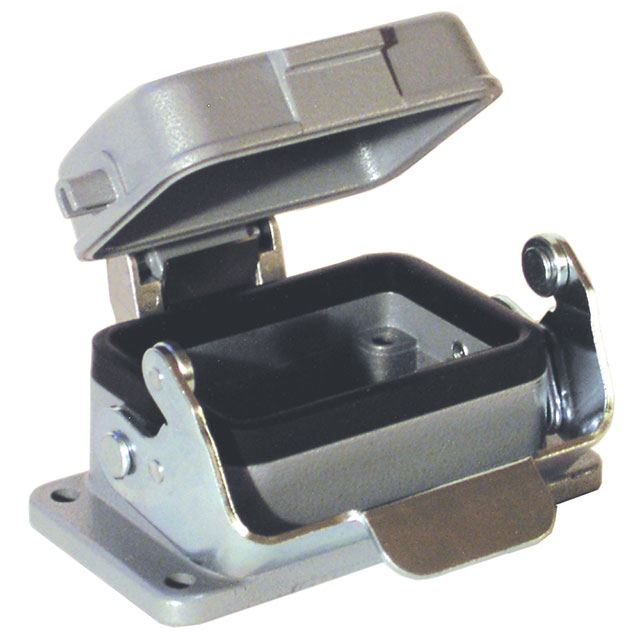

CONN BASE HB6 PNL MNT W/DC

Search across all available documentation for this part.

Active

LAPP

CONN BASE HB6 PNL MNT W/DC

Technical Specifications

Parameters and characteristics for this part

Specification	100040C0

Connector Type	Base - Panel Mount
Features	Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB6
Size / Dimension [x]	80 mm
Size / Dimension [x]	3.15 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	1.094 in
Size / Dimension [z]	27.8 mm
Style	Bottom Entry

Part	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Material	Ingress Protection	Style	Housing Finish	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Housing Color	Features	Size
LAPP 100040C0	Locking Clip (1) on Base Bottom	125 °C	-40 °C	Base - Panel Mount	Aluminum Alloy	IP65 - Dust Tight Water Resistant	Bottom Entry	Powder Coated	1.094 in	1.693 in	43 mm	80 mm	3.15 in	27.8 mm	Gray	Cover	HB6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry HB6 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
