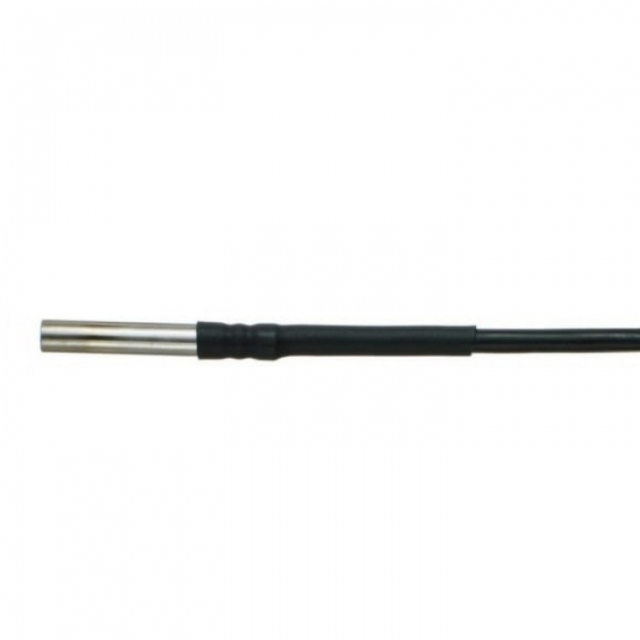

SN234M

Active

Comet America, LP

PT1000TG68/M, TEMP PROBE, 10 M

Search across all available documentation for this part.

Active

Comet America, LP

PT1000TG68/M, TEMP PROBE, 10 M

Technical Specifications

Parameters and characteristics for this part

Specification	SN234M

Conductor Type	Non-Grounded
Diameter - Protective Tube [diameter]	6 mm
Element Type	Pt1000
Length - Lead Wire [x]	32.808 '
Length - Lead Wire [x]	10 m
Length - Protective Tube [x]	60 mm
Temperature Range [Max]	200 °C
Temperature Range [Min]	-58 °F
Terminal Type	Exposed Lead Wires

Part	Length - Protective Tube [x]	Length - Lead Wire [x]	Length - Lead Wire [x]	Conductor Type	Temperature Range [Min]	Temperature Range [Max]	Diameter - Protective Tube [diameter]	Element Type	Terminal Type
Comet America, LP SN234M	60 mm	32.808 '	10 m	Non-Grounded	-58 °F	200 °C	6 mm	Pt1000	Exposed Lead Wires

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pt1000 Temperature Sensor -50°C ~ 200°C Non-Grounded Exposed Lead Wires

Technical documentation and resources
