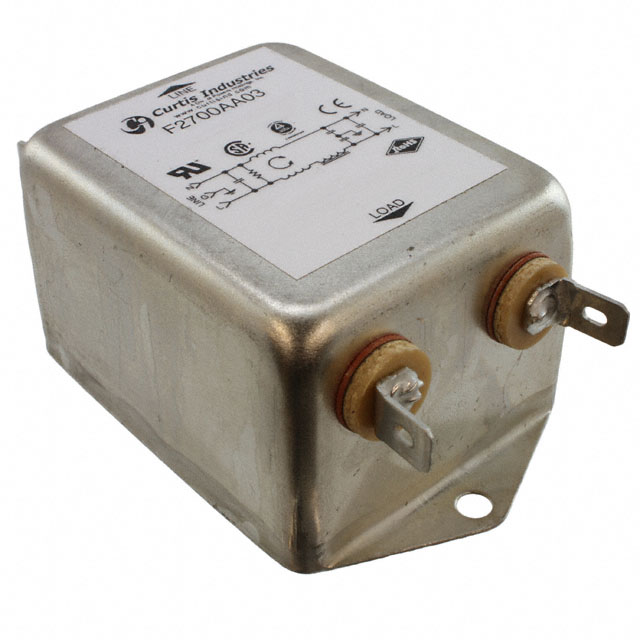

F2700AA03
ActiveCurtis Industries
LINE FILTER 250VAC 3A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F2700AA03
ActiveCurtis Industries
LINE FILTER 250VAC 3A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | F2700AA03 |
|---|---|
| Applications | General Purpose |
| Approval Agency | TUV, CSA, UR, CE |
| Configuration | Single Stage |
| Current | 3 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 47.22 | |
| 10 | $ 45.65 | |||
| 25 | $ 44.07 | |||
| 50 | $ 42.50 | |||
| 100 | $ 38.96 | |||
Description
General part information
F2700A Series
Single Phase EMC/EMI Line Filter 3 A 250V 50/60Hz Single Stage Quick Connect
Documents
Technical documentation and resources
