7024AB

Active

TE Connectivity Aerospace, Defense and Marine

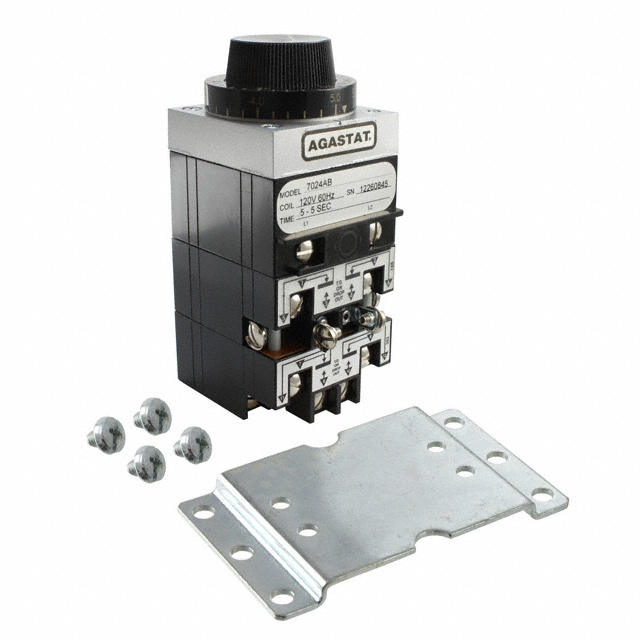

RELAY TIME DELAY 5SEC 10A 240V

Deep-Dive with AI

Search across all available documentation for this part.

Documents7000 AGASTAT Series Instr Sheet

7024AB

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 5SEC 10A 240V

Deep-Dive with AI

Documents7000 AGASTAT Series Instr Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7024AB

Circuit	4 Form C
Circuit	4PDT
Contact Rating @ Voltage	10 A, 240 VAC
Delay Time [Max]	5 Sec
Delay Time [Min]	0.5 Sec
Function	Off-Delay
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

1423165 Series

Part	Voltage - Supply	Circuit	Circuit	Delay Time [Max]	Delay Time [Min]	Timing Adjustment Method	Function	Relay Type	Termination Style	Timing Initiate Method	Contact Rating @ Voltage
TE Connectivity Aerospace, Defense and Marine 7024AAT	120 VAC	4 Form C	4PDT	1 Sec	0.1 Sec	Hand Dial	Off-Delay	Mechanical Relay	Screw Terminal	Input Voltage	10 A 240 VAC
TE Connectivity Aerospace, Defense and Marine 1-1423165-3	120 VAC	4 Form C	4PDT	30 Min	3 Cyc	Hand Dial	Off-Delay	Mechanical Relay	Screw Terminal	Input Voltage	10 A 240 VAC
TE Connectivity Aerospace, Defense and Marine 2-1423165-4
TE Connectivity Aerospace, Defense and Marine 7024AK	120 VAC	4 Form C	4PDT	300 Sec	1 Sec	Hand Dial	Off-Delay	Mechanical Relay	Screw Terminal	Input Voltage	10 A 240 VAC
TE Connectivity Aerospace, Defense and Marine 7024EC	24 VAC	4 Form C	4PDT	15 Sec	1.5 Sec	Hand Dial	Off-Delay	Mechanical Relay	Screw Terminal	Input Voltage	10 A 400 VAC
TE Connectivity Aerospace, Defense and Marine 7024AD	120 VAC	4 Form C	4PDT	50 Sec	5 Sec	Hand Dial	Off-Delay	Mechanical Relay	Screw Terminal	Input Voltage	10 A 240 VAC
TE Connectivity Aerospace, Defense and Marine 7024AB	120 VAC	4 Form C	4PDT	5 Sec	0.5 Sec	Hand Dial	Off-Delay	Mechanical Relay	Screw Terminal	Input Voltage	10 A 240 VAC
TE Connectivity Aerospace, Defense and Marine 7024ADT	120 VAC	4 Form C	4PDT	50 Sec	5 Sec	Hand Dial	Off-Delay	Mechanical Relay	Screw Terminal	Input Voltage	10 A 240 VAC
TE Connectivity Aerospace, Defense and Marine 1423165-8	120 VAC	4 Form C	4PDT	10 Min	1 Min	Hand Dial	Off-Delay	Mechanical Relay	Screw Terminal	Input Voltage	10 A 240 VAC
TE Connectivity Aerospace, Defense and Marine 7024AC	120 VAC	4 Form C	4PDT	15 Sec	1.5 Sec	Hand Dial	Off-Delay	Mechanical Relay	Screw Terminal	Input Voltage	10 A 240 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 897.44

Description

General part information

1423165 Series

Off-Delay Time Delay Relay 4PDT (4 Form C) 0.5 Sec ~ 5 Sec Delay 10A @ 240VAC Panel Mount

Documents

Technical documentation and resources

7000 AGASTAT Series Instr Sheet

Datasheet
