Q5-4X-5/16-01-QB48IN-25

Active

Qualtek

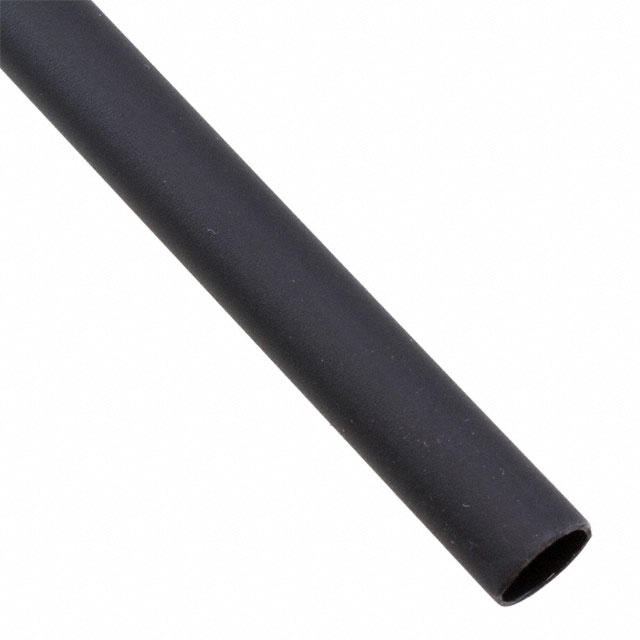

HEATSHRINK 5/16"-48" BLACK 1=1PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 5/16"-48" BLACK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-4X-5/16-01-QB48IN-25

Color	Black
Features	Adhesive Lined, Fluid Resistant
Inner Diameter - Recovered [diameter]	2.03 mm
Inner Diameter - Recovered [diameter]	0.08 in
Inner Diameter - Supplied [diameter]	8 mm
Inner Diameter - Supplied [diameter]	0.315 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.99 mm
Recovered Wall Thickness	0.039 in
Shelf Life	60 Months
Shrink Temperature	80 °C
Shrinkage Ratio	4 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Type	Material	Color	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]	Features
Qualtek Q5-4X-5/16-01-QB48IN-25	Tubing Flexible	Polyolefin (PO)	Black	60 Months	-55 °C	125 °C	2.03 mm	0.08 in	8 mm	0.315 in	4 to 1	-50 °F -10 °C	40 °C	80 °C	0.99 mm	0.039 in	1.22 m	4 ft	Adhesive Lined Fluid Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.315" (8.00mm) 4 to 1 Black 4.00' (1.22m)
