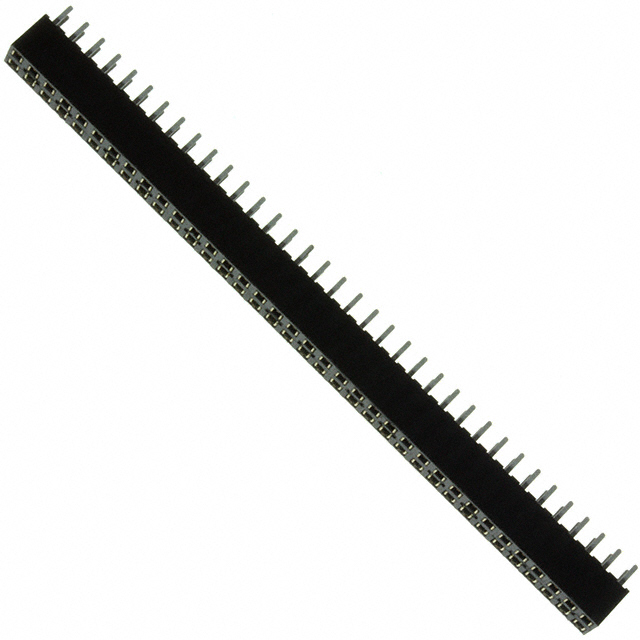

25647201RP2

Active

MH Connectors

CONN RCPT 72POS 0.079 GOLD PCB

Search across all available documentation for this part.

Active

MH Connectors

CONN RCPT 72POS 0.079 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	25647201RP2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Connector Type	Contact Type	Number of Positions Loaded	Termination	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Fastening Type	Insulation Color	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material
MH Connectors 25647201RP2	0.079 in	2 mm	Square	Receptacle	Female Socket	All	Solder	0.118 in	3 mm	0.177 in	4.5 mm	Tin	Gold	Through Hole	-40 °C	105 ░C	UL94 V-0	Push-Pull	Black	72	0.079 in	2 mm	Flash	2	2.54 µm	100 µin	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 10.06

General part information

72 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
