14-235.022K

Active

EAO

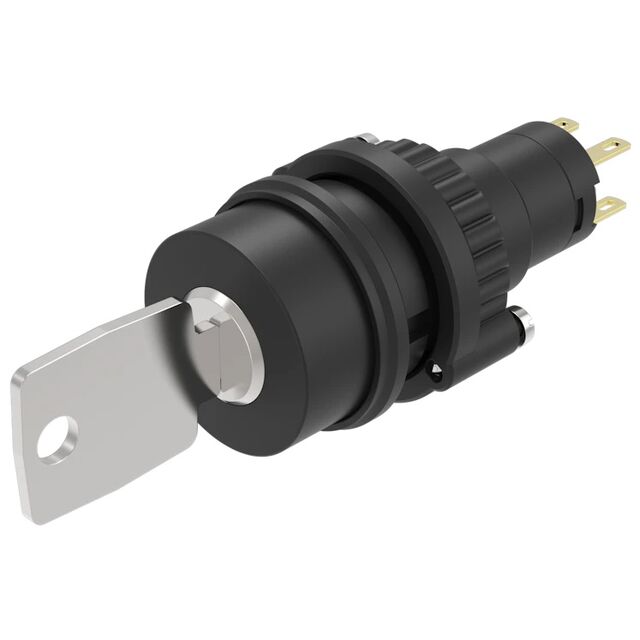

KEYLOCK SWITCH 2 POSITIONS REST(A)-MAINTAINED SA 1NC+1NO ST/PT D29 GOLD/SILVER 1001 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

EAO

KEYLOCK SWITCH 2 POSITIONS REST(A)-MAINTAINED SA 1NC+1NO ST/PT D29 GOLD/SILVER 1001 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	14-235.022K

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	DPST-NO/NC
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Depth Behind Flange [z]	45.5 mm
Features	IP65
Key Removable Positions	1 only
Mechanical Life	1000000 Cycles
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Off, Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	250 V

Part	Actuator Type	Angle of Throw	Features	Switch Function	Current Rating (Amps)	Depth Behind Flange [z]	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Number of Positions	Termination Style	Termination Style	Termination Style	Contact Timing	Mechanical Life	Voltage Rating - AC	Circuit	Key Removable Positions
EAO 14-235.022K	Flat Key	90 °	IP65	Off-On On-Off	5 A	45.5 mm	55 °C	-25 °C	22.3 mm	2	0.11 in	Quick Connect Solder	2.8 mm	Not Specified	1000000 Cycles	250 V	DPST-NO/NC	1 only
