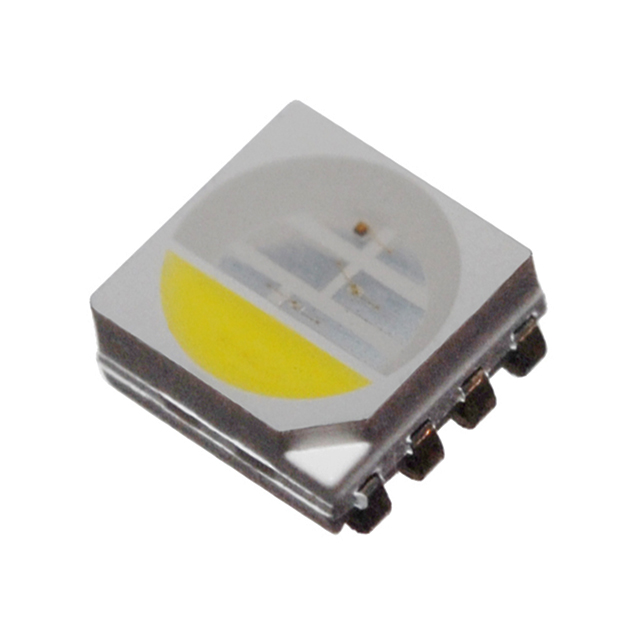

QBLP679-RGBCW

Active

QT Brightek (QTB)

LED RGBW DIFFUSED 8PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBLP679-RGBCW

Active

QT Brightek (QTB)

LED RGBW DIFFUSED 8PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QBLP679-RGBCW

Color	Green, Blue, White, Red
Configuration	Independent
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	1.65 mm
Lens Color	Yellow
Lens Size [diameter]	4.5 mm
Lens Transparency	Diffused
Millicandela Rating [custom]	2200 mcd
Millicandela Rating [custom]	500 mcd
Millicandela Rating [custom]	450 mcd
Mounting Type	Surface Mount
Package / Case	2020
Package / Case	5050 Metric
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Supplier Device Package	8-PLCC
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Wavelength - Dominant [custom]	624 nm
Wavelength - Dominant [custom]	470 nm
Wavelength - Dominant [custom]	525 nm

QBLP679 Series

Part	Lens Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max] [z]	Viewing Angle	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Lens Transparency	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Color	Package / Case	Package / Case	Lens Size [diameter]	Mounting Type	Supplier Device Package	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]
QT Brightek (QTB) QBLP679-RGBCW	Yellow	3.2 V	2 V	3.2 V	5 mm	5 mm	1.65 mm	120 °	624 nm	470 nm	525 nm	Diffused	Independent	2200 mcd	500 mcd	450 mcd	Blue Green Red White	2020	5050 Metric	4.5 mm	Surface Mount	8-PLCC	20 mA	20 mA	20 mA	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.74
		10	$ 0.48
		100	$ 0.32
	Digi-Reel®	1	$ 0.74
		10	$ 0.48
		100	$ 0.32
	Tape & Reel (TR)	1000	$ 0.25
		2000	$ 0.23
		5000	$ 0.22
		10000	$ 0.22
		25000	$ 0.22

Description

General part information

QBLP679 Series

Red, Green, Blue, White (RGBW) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.2V Green, 3.2V Green, 3.2V White 2020 (5050 Metric)
