346-036-526-803

Active

EDAC Inc.

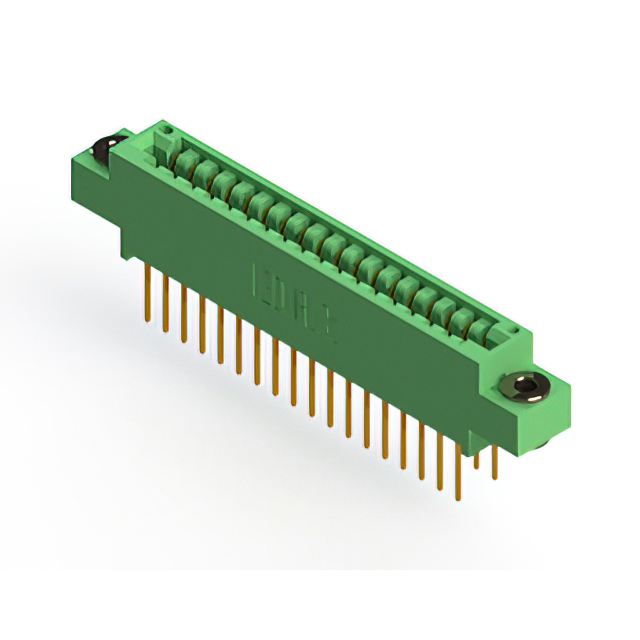

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

346-036-526-803

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-036-526-803

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	36
Number of Positions/Bay/Row [custom]	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

346-036 Series

...

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Contact Material	Number of Rows	Read Out	Material - Insulation	Number of Positions	Color	Termination	Contact Finish	Gender	Card Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features	Flange Feature	Flange Feature
EDAC Inc. 346-036-541-112	Through Hole	-40 °C	105 ░C	1	36	0.125 in	3.18 mm	Copper Alloy	1	Single	Polyester Thermoplastic	36	Green	Wire Wrap	Gold	Female	Non Specified - Single Edge	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 346-036-526-104	Through Hole	-40 °C	105 ░C	1	36	0.125 in	3.18 mm	Copper Alloy	1	Single	Polyester Thermoplastic	36	Green	Solder	Gold	Female	Non Specified - Single Edge	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 346-036-522-102	Through Hole	-40 °C	105 ░C	1	36	0.125 in	3.18 mm	Copper Alloy	1	Single	Polyester Thermoplastic	36	Green	Solder	Gold	Female	Non Specified - Single Edge	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 346-036-520-258	Through Hole	-40 °C	105 ░C	2	18	0.125 in	3.18 mm	Copper Alloy	2	Dual	Polyester Thermoplastic	36	Green	Solder	Gold	Female	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Card Guides
EDAC Inc. 346-036-559-607	Through Hole Right Angle	-40 °C	105 ░C	1	36	0.125 in	3.18 mm	Copper Alloy	1	Single	Polyester Thermoplastic	36	Green	Solder Wire Wrap	Gold	Female	Non Specified - Single Edge	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in		M3 Threaded Insert Top Mount Opening
EDAC Inc. 346-036-520-203	Through Hole	-40 °C	105 ░C	2	18	0.125 in	3.18 mm	Copper Alloy	2	Dual	Polyester Thermoplastic	36	Green	Solder	Gold	Female	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 346-036-526-612	Through Hole	-40 °C	105 ░C	1	36	0.125 in	3.18 mm	Copper Alloy	1	Single	Polyester Thermoplastic	36	Green	Solder	Gold	Female	Non Specified - Single Edge	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in		Side Mount Opening Unthreaded			3.25 mm	0.128 in
EDAC Inc. 346-036-522-804	Through Hole	-40 °C	105 ░C	2	18	0.125 in	3.18 mm	Copper Alloy	2	Dual	Polyester Thermoplastic	36	Green	Solder	Gold	Female	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	3.96 mm	Top Mount Opening Unthreaded	0.156 in
EDAC Inc. 346-036-559-612	Through Hole Right Angle	-40 °C	105 ░C	1	36	0.125 in	3.18 mm	Copper Alloy	1	Single	Polyester Thermoplastic	36	Green	Solder Wire Wrap	Gold	Female	Non Specified - Single Edge	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in		Side Mount Opening Unthreaded			3.25 mm	0.128 in
EDAC Inc. 346-036-526-803	Through Hole	-40 °C	105 ░C	2	18	0.125 in	3.18 mm	Copper Alloy	2	Dual	Polyester Thermoplastic	36	Green	Solder	Gold	Female	Non Specified - Dual Edge	Cantilever	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 10.64
Newark	Each	25	$ 17.43
		50	$ 16.86
		100	$ 15.74
		250	$ 15.18
		500	$ 14.34

Description

General part information

346-036 Series

36 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet

Enhanced Product Overview EN

Datasheet
