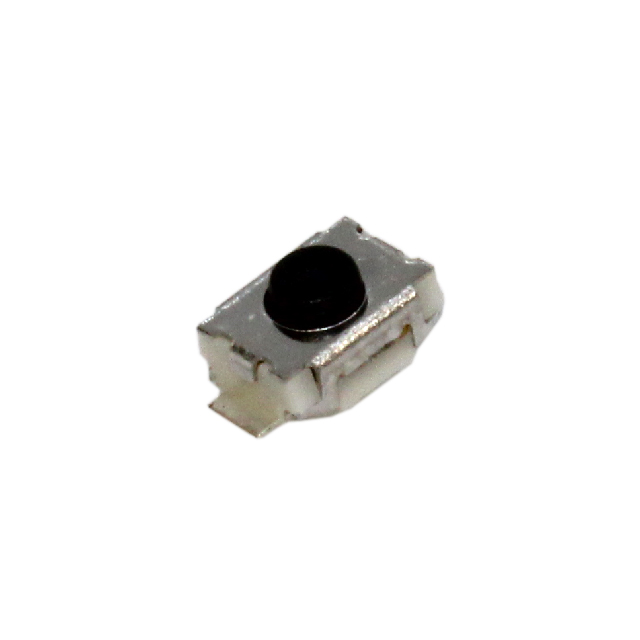

CS1213BGF260
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 50V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS1213BGF260
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 50V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS1213BGF260 |
|---|---|
| Actuator Height off PCB, Vertical [z] | 2 mm |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 50 VDC, 0.05 A |
| Illumination | Non-Illuminated |
| Mounting Type | Surface Mount |
| Operating Force | 260 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 3.9 mm |
| Outline [y] | 2.9 mm |
| Switch Function | Off-Mom |
| Switch Travel | 1.5 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.39 | |||
| 25 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 2500 | $ 0.16 | ||
Description
General part information
CS1213B Series
Tactile Switch SPST-NO Top Actuated Surface Mount
Documents
Technical documentation and resources
