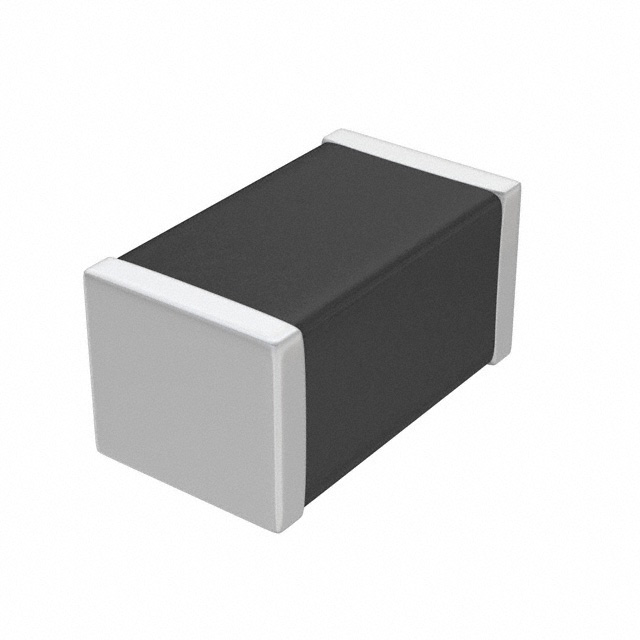

ERB1885C2E470JDX5D

Obsolete

Murata Power Solutions Inc.

CAP CER 47PF 250V C0G/NP0 0603

Deep-Dive with AI

Search across all available documentation for this part.

ERB1885C2E470JDX5D

Obsolete

Murata Power Solutions Inc.

CAP CER 47PF 250V C0G/NP0 0603

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERB1885C2E470JDX5D

Applications	High Frequency, Microwave, RF
Capacitance	47 pF
Features	Low Loss, High Q
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Temperature Coefficient	NP0, C0G
Thickness (Max) [Max]	0.9 mm
Thickness (Max) [Max]	0.035 in
Tolerance	5 %
Voltage - Rated	250 V

ERB1885C2E Series

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Capacitance	Temperature Coefficient	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Voltage - Rated	Features	Operating Temperature [Min]	Operating Temperature [Max]
Murata Power Solutions Inc. ERB1885C2E1R3CDX1J	MLCC Surface Mount	1.6 mm	0.032 in	0.063 in	0.8 mm	0603 (1608 Metric)	1.3 pF	C0G NP0	High Frequency Microwave RF	0.9 mm	0.035 in	0.25 pF	250 V	High Q Low Loss	-55 °C	125 °C
Murata Power Solutions Inc. ERB1885C2E9R1DDX5J	MLCC Surface Mount	1.6 mm	0.032 in	0.063 in	0.8 mm	0603 (1608 Metric)	9.1 pF	C0G NP0	High Frequency Microwave RF	0.9 mm	0.035 in	0.5 pF	250 V	High Q Low Loss	-55 °C	125 °C
Murata Power Solutions Inc. ERB1885C2E2R4CDX1J	MLCC Surface Mount	1.6 mm	0.032 in	0.063 in	0.8 mm	0603 (1608 Metric)	2.4 pF	C0G NP0	High Frequency Microwave RF	0.9 mm	0.035 in	0.25 pF	250 V	High Q Low Loss	-55 °C	125 °C
Murata Power Solutions Inc. ERB1885C2E3R3WDX1J	MLCC Surface Mount	1.6 mm	0.032 in	0.063 in	0.8 mm	0603 (1608 Metric)	3.3 pF	C0G NP0	High Frequency Microwave RF	0.9 mm	0.035 in	0.05 pF	250 V	High Q Low Loss	-55 °C	125 °C
Murata Power Solutions Inc. ERB1885C2E6R2DDX1D	MLCC Surface Mount	1.6 mm	0.032 in	0.063 in	0.8 mm	0603 (1608 Metric)	6.2 pF	C0G NP0	High Frequency Microwave RF	0.9 mm	0.035 in	0.5 pF	250 V	High Q Low Loss	-55 °C	125 °C
Murata Power Solutions Inc. ERB1885C2E3R0WDX1J	MLCC Surface Mount	1.6 mm	0.032 in	0.063 in	0.8 mm	0603 (1608 Metric)	3 pF	C0G NP0	High Frequency Microwave RF	0.9 mm	0.035 in	0.05 pF	250 V	High Q Low Loss	-55 °C	125 °C
Murata Power Solutions Inc. ERB1885C2E1R8WDX1J	MLCC Surface Mount	1.6 mm	0.032 in	0.063 in	0.8 mm	0603 (1608 Metric)	1.8 pF	C0G NP0	High Frequency Microwave RF	0.9 mm	0.035 in	0.05 pF	250 V	High Q Low Loss	-55 °C	125 °C
Murata Power Solutions Inc. ERB1885C2E7R0DDX5D	MLCC Surface Mount	1.6 mm	0.032 in	0.063 in	0.8 mm	0603 (1608 Metric)	7 pF	C0G NP0	High Frequency Microwave RF	0.9 mm	0.035 in	0.5 pF	250 V	High Q Low Loss	-55 °C	125 °C
Murata Power Solutions Inc. ERB1885C2E470JDX5D	MLCC Surface Mount	1.6 mm	0.031 in	0.063 in	0.8 mm	0603 (1608 Metric)	47 pF	C0G NP0	High Frequency Microwave RF	0.9 mm	0.035 in	5 %	250 V	High Q Low Loss	-55 °C	125 °C
Murata Power Solutions Inc. ERB1885C2E6R0BDX1J	MLCC Surface Mount	1.6 mm	0.032 in	0.063 in	0.8 mm	0603 (1608 Metric)	6 pF	C0G NP0	High Frequency Microwave RF	0.9 mm	0.035 in	0.1 pF	250 V	High Q Low Loss	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ERB1885C2E Series

47 pF ±5% 250V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)

Documents

Technical documentation and resources

No documents available
