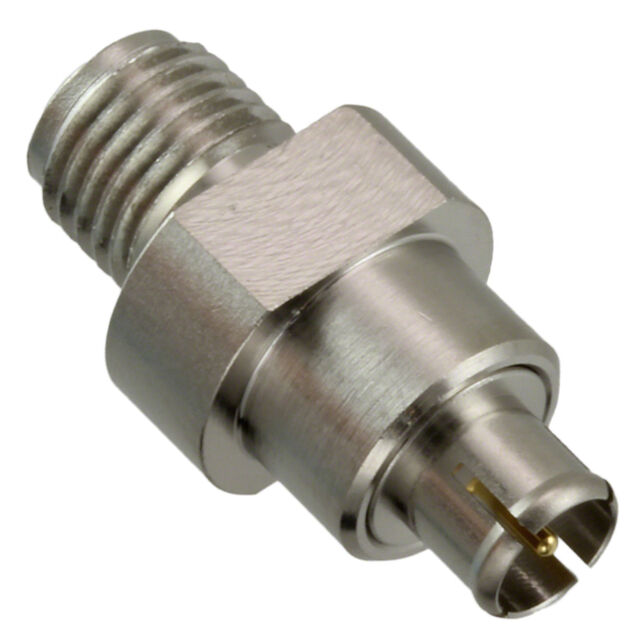

GT16GP-HRMJ

Active

Hirose Electric USA, Inc.

CONN ADAPT GT16G PLUG TO SMA JCK

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN ADAPT GT16G PLUG TO SMA JCK

Technical Specifications

Parameters and characteristics for this part

Specification	GT16GP-HRMJ

Adapter Series	SMA to GT16G
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	GT16G Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Style	Straight

Part	Frequency - Max [Max]	Mating Cycles	Body Material	Center Contact Material	Adapter Series	Mounting Type	Fastening Type	Center Contact Plating	Conversion Type	Impedance	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Style	Dielectric Material	Adapter Type	Convert From (Adapter End)
Hirose Electric USA, Inc. GT16GP-HRMJ	6000 MHz	1000	Stainless Steel	Beryllium Copper	SMA to GT16G	Free Hanging (In-Line)	Snap-On Threaded	Gold	Between Series	50 Ohms	Nickel	-30 ░C	85 °C	Female Socket SMA Jack	Straight	Polytetrafluoroethylene (PTFE)	Plug to Jack	GT16G Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector GT16G Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
