CT3348A

Active

Cal Test Electronics

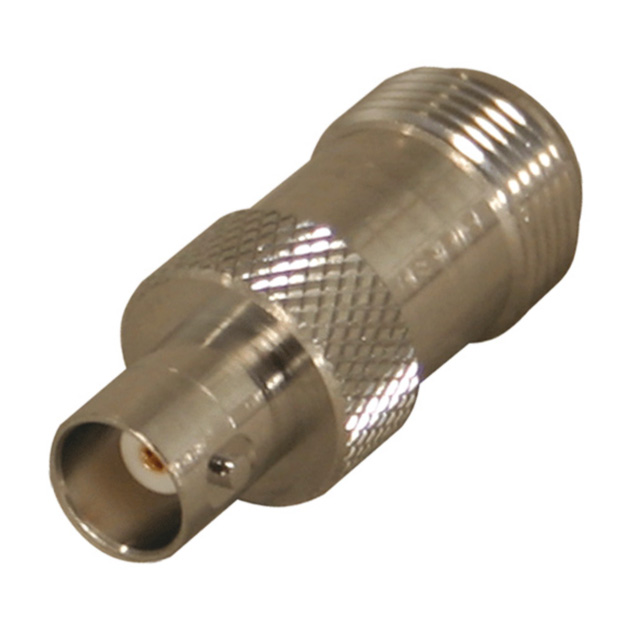

BNC FEMALE TO N FEMALE ADAPTER, 50 OHM, INSTRUMENT GRADE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Cal Test Electronics

BNC FEMALE TO N FEMALE ADAPTER, 50 OHM, INSTRUMENT GRADE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	CT3348A

Adapter Series	BNC to N
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Body Finish	Conversion Type	Body Material	Convert To (Adapter End)	Adapter Type	Adapter Series	Dielectric Material	Style	Convert From (Adapter End)	Center Contact Material	Frequency - Max [Max]	Center Contact Plating	Center Gender	Impedance	Mounting Type	Fastening Type
Cal Test Electronics CT3348A	Nickel	Between Series	Brass	Female Socket N Jack	Jack to Jack	BNC to N	Polytetrafluoroethylene (PTFE)	Straight	BNC Jack Female Socket	Beryllium Copper Brass	10 GHz	Gold	Female to Female	50 Ohms	Free Hanging (In-Line)	Bayonet Lock Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.00
Newark	Each	1	$ 50.00

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To N Jack, Female Socket 50 Ohms
