7100.1122.96

Active

SCHURTER Inc.

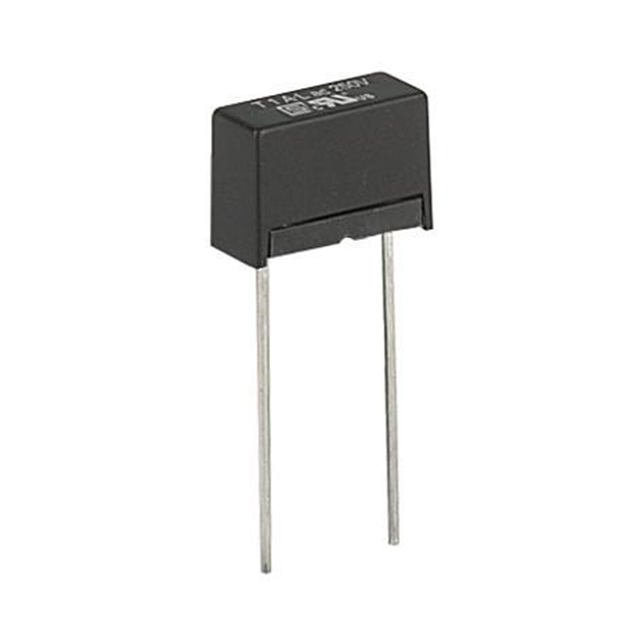

FUSE BOARD MNT 5A 250VAC RADIAL

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BOARD MNT 5A 250VAC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	7100.1122.96

Breaking Capacity @ Rated Voltage	50 A
Current Rating (Amps)	5 A
Fuse Type	Board Mount
Melting I˛t	32
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Box
Response Time	Slow Blow
Size / Dimension [x]	0.453 "
Size / Dimension [x]	11.5 mm
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.315 "
Voltage Rating - AC	250 V

Part	Package / Case	Fuse Type	Mounting Type	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Melting I˛t	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Response Time	Operating Temperature [Max]	Operating Temperature [Min]
SCHURTER Inc. 7100.1122.96	Radial Box	Board Mount	Through Hole	50 A	250 V	32	5 A	0.197 "	0.453 "	8 mm	0.315 "	5 mm	11.5 mm	Slow Blow	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.93

General part information

5 A 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
