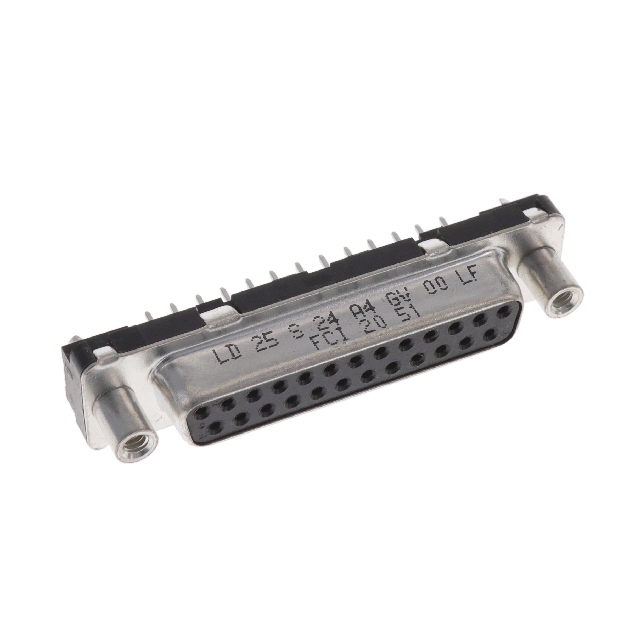

LD25S24A4GV00LF

Active

Amphenol ICC (FCI)

CONN D-SUB RCPT 25POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN D-SUB RCPT 25POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	LD25S24A4GV00LF

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Type	Connector Type	Current Rating (Amps)	Flange Feature	Connector Style	Voltage Rating	Contact Finish Thickness	Color	Termination	Contact Material	Contact Finish	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Mounting Type	Shell Material, Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows
Amphenol ICC (FCI) LD25S24A4GV00LF	Signal	Receptacle Female Sockets	5 A	Female Screwlock (4-40) Mating Side	D-Sub	250 VDC	Flash	Black	Solder	Copper Alloy	Gold	Thermoplastic	105 ░C	-55 °C	UL94 V-0	Through Hole	Steel Tin-Nickel Plated	B DB	3	2
