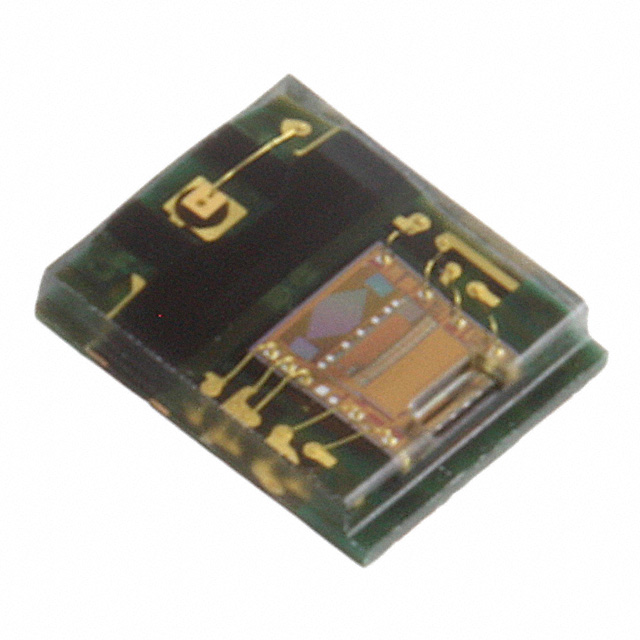

AEDR-8501-100
ActiveBroadcom Limited
SENSOR OPT REFLECTIVE 1MM 8SMD
Deep-Dive with AI
Search across all available documentation for this part.
AEDR-8501-100
ActiveBroadcom Limited
SENSOR OPT REFLECTIVE 1MM 8SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AEDR-8501-100 |
|---|---|
| Current - Supply | 15 mA |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Sensing Distance | 1 mm |
| Sensing Distance | 0.039 " |
| Sensing Light | Infrared |
| Sensing Method | Reflective |
| Sensing Object | Codewheel/Codestrip |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 24.13 | |
| 5 | $ 20.74 | |||
| 10 | $ 19.43 | |||
| 25 | $ 17.81 | |||
| 50 | $ 16.68 | |||
| 100 | $ 15.61 | |||
| 250 | $ 14.29 | |||
| 500 | $ 13.46 | |||
| Digi-Reel® | 1 | $ 24.13 | ||
| 5 | $ 20.74 | |||
| 10 | $ 19.43 | |||
| 25 | $ 17.81 | |||
| 50 | $ 16.68 | |||
| 100 | $ 15.61 | |||
| 250 | $ 14.29 | |||
| 500 | $ 13.46 | |||
| Tape & Reel (TR) | 1000 | $ 11.70 | ||
Description
General part information
AEDR-8501 Series
Reflective Optical Sensor 0.039" (1mm) Codewheel/Codestrip 8-SMD, No Lead
Documents
Technical documentation and resources
No documents available
