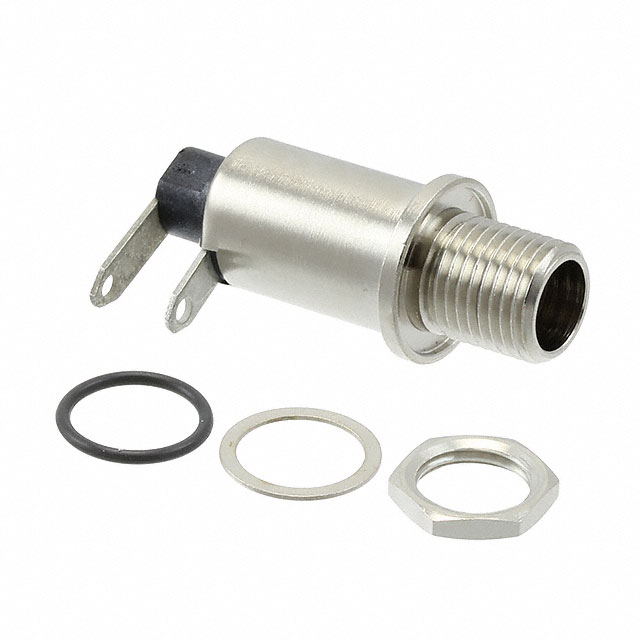

RAPC10U

Active

Switchcraft Inc.

CONN POWER JACK SOLDER EYELET

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN POWER JACK SOLDER EYELET

Technical Specifications

Parameters and characteristics for this part

Specification	RAPC10U

Actual Diameter [diameter]	5.75 mm, 1.93 mm
Actual Diameter [diameter]	0.226 in, 0.076 in
Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating (Amps)	10 A
Features	Mounting Hardware
Gender	Male
Housing Material	Thermoplastic
Includes	1 Washer, 1 O-Ring, 1 Nut, 1 Connector
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm
Internal Switch(s)	False
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Thread Size	5/16"-32
Voltage - Rated	24 V

Part	Actual Diameter [diameter]	Actual Diameter [diameter]	Thread Size	Shielding	Features	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Internal Switch(s)	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Housing Material	Contact Material - Plating	Voltage - Rated	Gender	Includes	Contact Material	Mounting Feature	Connector Type	Termination	Body Color	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Body Material	Ingress Protection	Mounting Type	Contact Material - Plating [custom]	Internal Switch(s)	Number of Positions/Contacts
Switchcraft Inc. RAPC10U	1.93 mm 5.75 mm	0.076 in 0.226 in	5/16"-32	Unshielded	Mounting Hardware	2	2		0.079 in 0.217 "	2 mm 5.5 mm	Thermoplastic	Tin	24 V	Male	1 Connector 1 Nut 1 O-Ring 1 Washer	Copper Alloy	Bulkhead - Front Side Nut	Jack	Solder Eyelet(s)	Black Silver	-40 °C	105 ░C	10 A	Copper Alloy
Switchcraft Inc. RAPC10PS	2 mm 6.4 mm	0.079 in 0.252 "	5/16"-32	Unshielded	Board Guide						Thermoplastic		24 VDC	Male	1 Connector 1 Nut 1 O-Ring 1 Washer	Copper Alloy	Bulkhead - Front Side Nut	Jack	Solder	Black Silver	-40 °C	105 ░C	11 A	Copper Alloy	IP68	Through Hole	Silver	Normally Closed Single Switch	2 Conductors 3 Conductors

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Panel Mount
