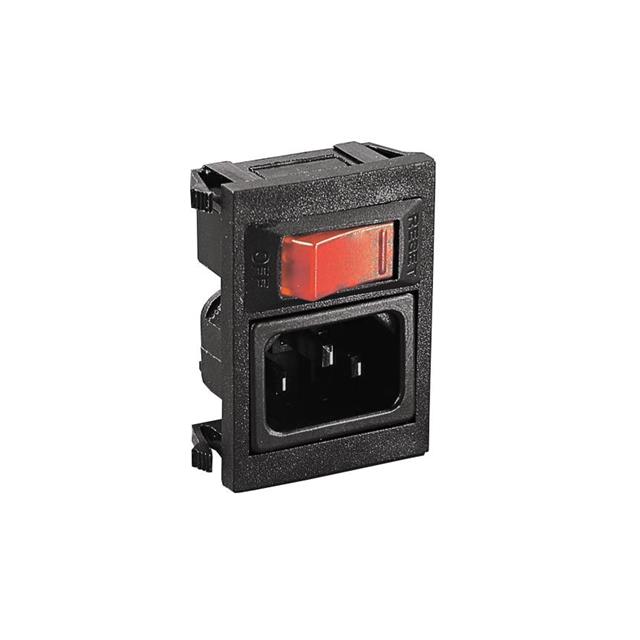

BZV03/Z0000/01

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

BZV03/Z0000/01

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BZV03/Z0000/01

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	34.4 mm
Panel Cutout Dimensions [y]	48.4 mm
Panel Thickness [Max]	3 mm
Panel Thickness [Max]	0.118 in
Panel Thickness [Min]	0.039 in
Panel Thickness [Min]	1 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

BZV03/Z Series

Part	Termination	Termination	Termination	Approval Agency	Mounting Type	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Fuse Holder, Drawer	Connector Style	Current Rating - Appliance Inlet	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Material Flammability Rating	Connector Type	Filter Type	Switch Features
BULGIN LIMITED BZV03/Z0000/75	0.25 in	6.3 mm	Quick Connect	CSA ENEC UL VDE	Panel Mount Snap-In	250 VAC	76.5 mm	34.4 mm	Fuse Holder Twin Fused	IEC 320-C14	10 A	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	Receptacle Male Blades - Module	Unfiltered - Commercial	Switch On-Off
BULGIN LIMITED BZV03/Z0000/21	0.25 in	6.3 mm	Quick Connect	CSA ENEC UL VDE	Panel Mount Snap-In	250 VAC	76.5 mm	34.4 mm	Fuse Holder Twin Fused	IEC 320-C14	10 A	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	Receptacle Male Blades - Module	Unfiltered - Commercial	Switch On-Off
BULGIN LIMITED BZV03/Z0000/04	0.25 in	6.3 mm	Quick Connect	CSA ENEC UL VDE	Panel Mount Snap-In	250 VAC	48.4 mm	34.4 mm	Fuse Holder Twin Fused	IEC 320-C14	10 A	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	Receptacle Male Blades - Module	Unfiltered - Commercial
BULGIN LIMITED BZV03/Z0000/01	0.25 in	6.3 mm	Quick Connect	CSA ENEC UL VDE	Panel Mount Snap-In	250 VAC	48.4 mm	34.4 mm		IEC 320-C14	10 A	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	Receptacle Male Blades - Module	Unfiltered - Commercial	Switch On-Off
BULGIN LIMITED BZV03/Z0000/07	0.25 in	6.3 mm	Quick Connect	CSA ENEC UL VDE	Panel Mount Snap-In	250 VAC	76.5 mm	34.4 mm	Fuse Holder Twin Fused	IEC 320-C14	10 A	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	Receptacle Male Blades - Module	Unfiltered - Commercial	Illuminated Switch On-Off
BULGIN LIMITED BZV03/Z0000/02	0.25 in	6.3 mm	Quick Connect	CSA ENEC UL VDE	Panel Mount Snap-In	250 VAC	48.4 mm	34.4 mm		IEC 320-C14	10 A	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	Receptacle Male Blades - Module	Unfiltered - Commercial	Switch On-Off
BULGIN LIMITED BZV03/Z0000/06	0.25 in	6.3 mm	Quick Connect	CSA ENEC UL VDE	Panel Mount Snap-In	250 VAC	76.5 mm	34.4 mm	Fuse Holder Twin Fused	IEC 320-C14	10 A	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	Receptacle Male Blades - Module	Unfiltered - Commercial	Switch On-Off

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.90
		10	$ 7.11
		25	$ 6.70
		50	$ 6.53
		100	$ 6.36
		250	$ 6.05
Newark	Each	1	$ 10.99

Description

General part information

BZV03/Z Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
