T3DSO1000-LS

Active

Teledyne LeCroy

OSCILLOSCOPE PROBE, 16 CHANNEL, LOGIC, TELEDYNE LECROY T3DSO1000HD SERIES DIGITAL OSCILLOSCOPES

Search across all available documentation for this part.

Active

Teledyne LeCroy

OSCILLOSCOPE PROBE, 16 CHANNEL, LOGIC, TELEDYNE LECROY T3DSO1000HD SERIES DIGITAL OSCILLOSCOPES

Technical Specifications

Parameters and characteristics for this part

Specification	T3DSO1000-LS

Type	General Purpose

Part	Interface	Channels	Input Impedance	Bandwidth	Type	Memory Size	Voltage - Input (Max) [Max]	Sampling Rate (Per Second)	Display Type	Rise Time (Typ)	Includes	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	For Use With/Related Products	Accessory Type	Voltage - Input (Max)
Teledyne LeCroy T3DSO2202	RS232 USB	2 Analog	1 M	200 MHz	Bench Digital	140 Mpts	240 V	2 G	LCD - Color	1.7 ns	Power Cord USB Adapter/Cable	Record Trend	100 VAC	240 VAC
Teledyne LeCroy T3DSO2302	RS232 USB	2 Analog	1 M	300 MHz	Bench Digital	140 Mpts	240 V	2 G	LCD - Color		Power Cord USB Adapter/Cable	Record Trend	100 VAC	240 VAC
Teledyne LeCroy T3DSO2104A	RS232 USB	4 Analog	1 M	100 MHz	Bench Digital	140 Mpts	240 V	2 G	LCD - Color	1 ns	Power Cord USB Adapter/Cable	Record	100 VAC	240 VAC
Teledyne LeCroy T3DSO1000-FG					Oscilloscope										Oscilloscopes: T3DSO1000	Software
Teledyne LeCroy T3DSO1000-LS					General Purpose
Teledyne LeCroy T3DSO1104	RS232 USB	4 Analog	1 M	100 MHz	Bench Digital	28 Mpts		1 G	LCD - Color	3.5 ns	Power Cord USB Adapter/Cable	Record Trend	100 VAC	240 VAC			240 V
Teledyne LeCroy T3DSO1000-MSO					Oscilloscope										Oscilloscopes: T3DSO1000	Software
Teledyne LeCroy T3DSO2000A-I2S
Teledyne LeCroy T3DSO1102	RS232 USB	2 Analog	1 M	100 MHz	Bench Digital	14 Mpts		1 G	LCD - Color	3.5 ns	Power Cord USB Adapter/Cable	Record Trend	100 VAC	240 VAC			240 V
Teledyne LeCroy T3DSO2104	RS232 USB	4 Analog	1 M	100 MHz	Bench Digital	280 Mpts	240 V	2 G	LCD - Color	3.5 ns	Power Cord USB Adapter/Cable	Record Trend	100 VAC	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 315.00
Newark	Each	1	$ 325.00

General part information

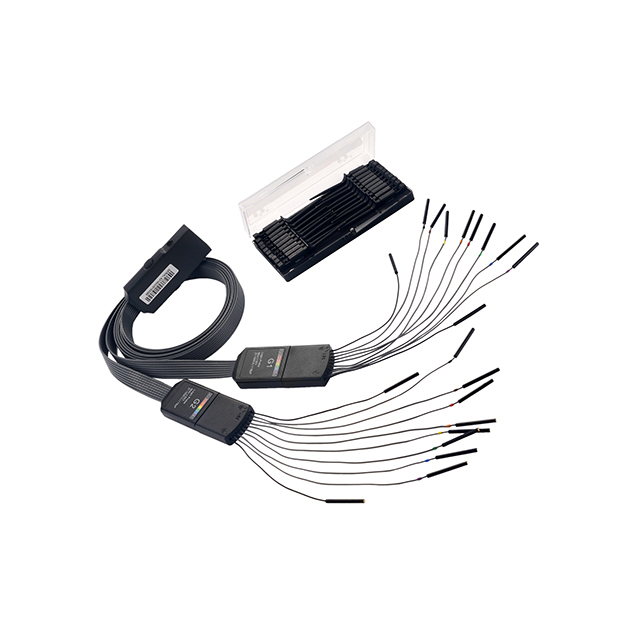

T3DSO1000-LS is a 16ch, 500MSa/s, 14Mpts MSO logic analyzer probe lead set.
