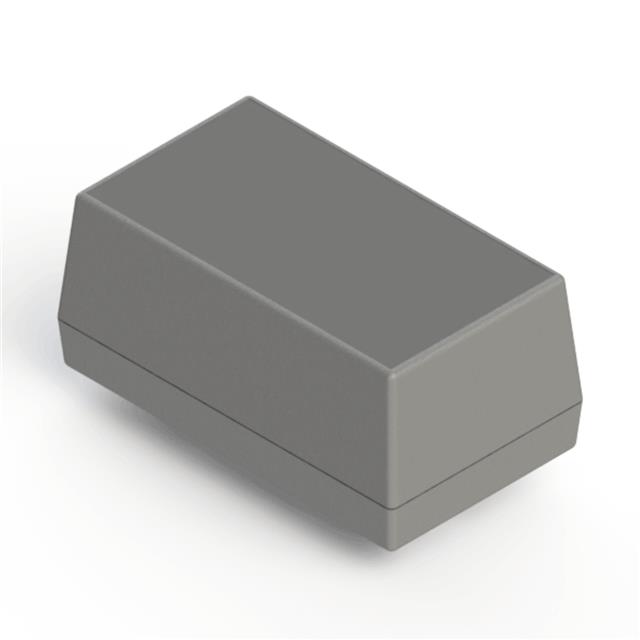

153I,GY

Active

Serpac

BOX ABS GRAY 5.62"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 5.62"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	153I,GY

Area (L x W)	118 cm²
Area (L x W)	18.3 in²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.291 lb
Weight	132 g

Part	Material	Area (L x W)	Area (L x W)	Thickness	Thickness	Material Flammability Rating	Color	Ratings	Height [z]	Height [z]	Weight	Weight	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Design	Container Type
Serpac 153I,AL	Plastic ABS	18.3 in²	118 cm²	2.54 mm	0.1 in	UL94 HB	Almond	IP40 NEMA 1	63.5 mm	2.5 in	0.291 lb	132 g	PCB Supports	3.25 "	142.75 mm	82.55 mm	5.62 in	Hand Held Split Sides	Box
Serpac 153I,GY	Plastic ABS	18.3 in²	118 cm²	2.54 mm	0.1 in	UL94 HB	Gray	IP40 NEMA 1	63.5 mm	2.5 in	0.291 lb	132 g	PCB Supports	3.25 "	142.75 mm	82.55 mm	5.62 in	Hand Held Split Sides	Box
Serpac 153I,BK	Plastic ABS	18.3 in²	118 cm²	2.54 mm	0.1 in	UL94 HB	Black	IP40 NEMA 1	63.5 mm	2.5 in	0.291 lb	132 g	PCB Supports	3.25 "	142.75 mm	82.55 mm	5.62 in	Hand Held Split Sides	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.500" (63.50mm)
