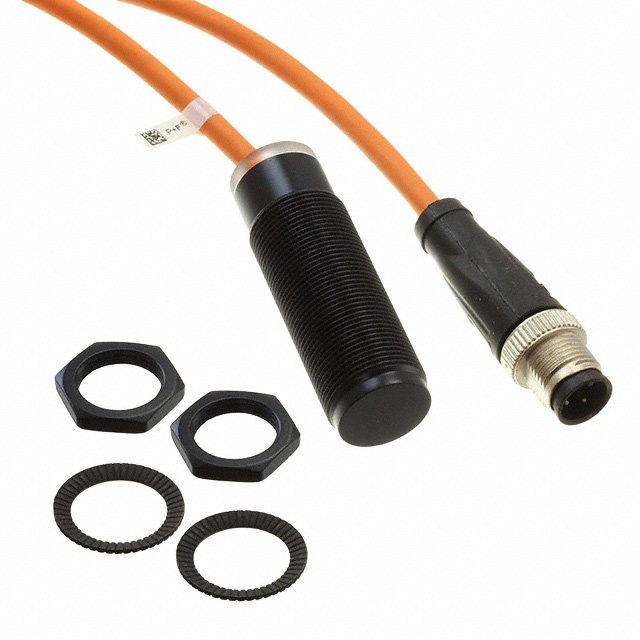

NMB5-18GM55-Z3-C-FE-300MM-V1

Active

PEPPERL+FUCHS

IND SEN 5MM PNP XYLAN COATED SS

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

IND SEN 5MM PNP XYLAN COATED SS

Technical Specifications

Parameters and characteristics for this part

Part	Sensor Type	Output Type	Package / Case	Ingress Protection	Termination Style	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Material - Body	Shielding	Voltage - Supply [Max]	Voltage - Supply [Min]
PEPPERL+FUCHS NMB5-18GM65-E2-C-FE-V1	Inductive	PNP-NO 3-Wire	Cylinder Threaded - M18	IP67 IP68 IP69K	Connector	0.197 in	5 mm	70 °C	-25 °C	LED	Stainless Steel	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NMB5-18GM85-US-FE-V12	Inductive	SCR-NO 2-Wire	Cylinder Threaded - M18	IP67	Connector	0.197 in	5 mm	70 °C	-25 °C	LED	Stainless Steel	Unshielded	250 VAC 300 VDC	20 VDC 20 VAC
PEPPERL+FUCHS NMB5-18GM65-E2-FE-V1	Inductive	PNP-NO 3-Wire	Cylinder Threaded - M18	IP67 IP68 IP69K	Connector	0.197 in	5 mm	70 °C	-40 °C	LED	Stainless Steel	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NMB5-18GM55-Z3-C-FE-300MM-V1	Inductive	SCR-NO 2-Wire	Cylinder Threaded - M18	IP67 IP68 IP69K	Cable with Connector	0.197 in	5 mm	70 °C	-25 °C	LED	Stainless Steel	Unshielded	30 VDC	6 V
PEPPERL+FUCHS NMB5-18GM85-US-FE-V93	Inductive	SCR-NO 2-Wire	Cylinder Threaded - M18	IP67	Connector	0.197 in	5 mm	70 °C	-25 °C	LED	Stainless Steel	Unshielded	250 VAC 300 VDC	20 VDC 20 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IND SEN 5MM PNP XYLAN COATED SS

Technical documentation and resources
