PX0842/B

Active

BULGIN LIMITED

USB SEALED CONNECTOR, USB TYPE B, USB 2.0, RECEPTACLE, 4 POSITION, PANEL MOUNT, IP68

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

PX0842/B

Active

BULGIN LIMITED

USB SEALED CONNECTOR, USB TYPE B, USB 2.0, RECEPTACLE, 4 POSITION, PANEL MOUNT, IP68

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0842/B

Convert From (Adapter End)	USB-B (USB TYPE-B), Receptacle
Convert To (Adapter End)	USB-A (USB TYPE-A), Receptacle
Mounting Type	Panel Mount, Bulkhead - Rear Side Nut

PX0842 Series

Part	Mounting Type	Convert From (Adapter End)	Convert To (Adapter End)
BULGIN LIMITED PX0842/B	Panel Mount Bulkhead - Rear Side Nut	USB-B (USB TYPE-B) Receptacle	Receptacle USB-A (USB TYPE-A)
BULGIN LIMITED PX0842/A	Panel Mount Bulkhead - Rear Side Nut	USB-A (USB TYPE-A) Receptacle	Receptacle USB-B (USB TYPE-B)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 24.89
		10	$ 21.79
		25	$ 20.85
		50	$ 20.18
		100	$ 19.51
		250	$ 18.43
		500	$ 17.89
Newark	Each	1	$ 26.22
		10	$ 23.44
		25	$ 22.33
		50	$ 21.23
		100	$ 20.53
		250	$ 19.42
		500	$ 19.01

Description

General part information

PX0842 Series

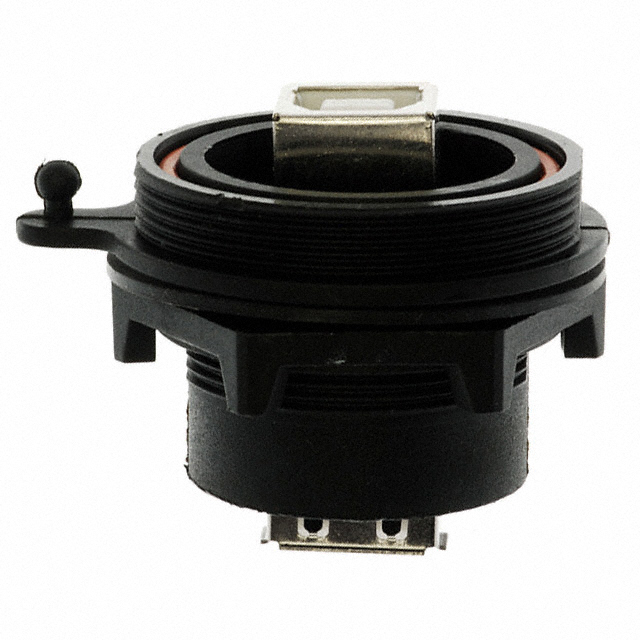

The PX0842/B from Bulgin is a shielded, IP68 rated standard USB 2.0 type 'B' connector. USB 2.0 interface has data transmission rate of 480Mbps. This device has high noise immunity and EMI protection thus suitable for PC and peripheral configuration.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
