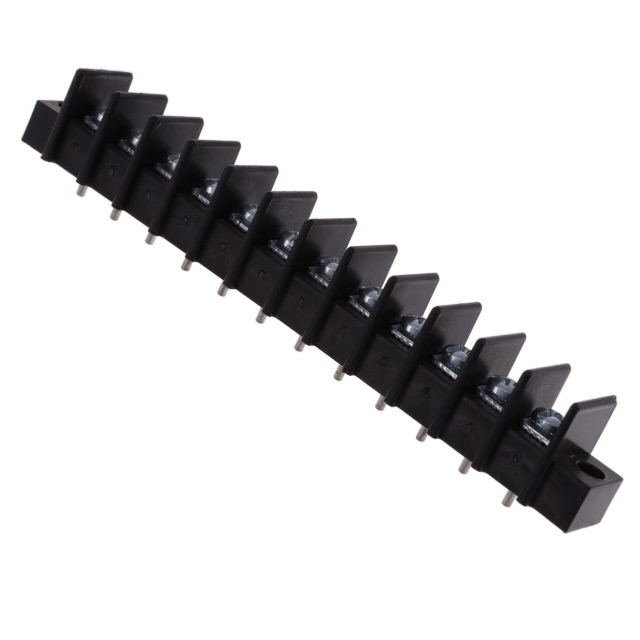

CBPW-12

Active

Curtis Industries

CONN BARRIER STRP 12CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBPW-12

Active

Curtis Industries

CONN BARRIER STRP 12CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CBPW-12

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	12
Number of Rows	1
Number of Wire Entries	12
Operating Temperature	140 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

CBPW Series

Part	Number of Wire Entries	Material - Insulation	Top Termination	Terminal Block Type	Pitch [x]	Pitch [x]	Operating Temperature	Voltage Rating	Barrier Type	Features	Material Flammability Rating	Number of Circuits	Color	Mounting Type	Bottom Termination	Current Rating (Amps)	Number of Rows	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries [custom]
Curtis Industries CBPW-6	6	Polyester Thermoplastic	Screws with Captive Plate	Barrier Block	9.53 mm	0.375 in	140 °C	300 VDC	2 Wall (Dual)	Flange	UL94 V-0	6	Black	Chassis Panel Through Hole	PC Pin	20 A	1	12 AWG	22 AWG
Curtis Industries CBPW-14	14	Polyester Thermoplastic	Screws with Captive Plate	Barrier Block	9.53 mm	0.375 in	140 °C	300 VDC	2 Wall (Dual)	Flange	UL94 V-0	14	Black	Chassis Panel Through Hole	PC Pin	20 A	1	12 AWG	22 AWG
Curtis Industries CBPW-11	11	Polyester Thermoplastic	Screws with Captive Plate	Barrier Block	9.53 mm	0.375 in	140 °C	300 VDC	2 Wall (Dual)	Flange	UL94 V-0	11	Black	Chassis Panel Through Hole	PC Pin	20 A	1	12 AWG	22 AWG
Curtis Industries CBPW-12	12	Polyester Thermoplastic	Screws with Captive Plate	Barrier Block	9.53 mm	0.375 in	140 °C	300 VDC	2 Wall (Dual)	Flange	UL94 V-0	12	Black	Chassis Panel Through Hole	PC Pin	20 A	1	12 AWG	22 AWG
Curtis Industries CBPW-24		Polyester Thermoplastic	Screws with Captive Plate	Barrier Block	9.53 mm	0.375 in	140 °C	300 VDC	2 Wall (Dual)	Flange	UL94 V-0	24	Black	Chassis Panel Through Hole	PC Pin	20 A	1	12 AWG	22 AWG
Curtis Industries CBPW-7	7	Polyester Thermoplastic	Screws with Captive Plate	Barrier Block	9.53 mm	0.375 in	140 °C	300 VDC	2 Wall (Dual)	Flange	UL94 V-0	7	Black	Chassis Panel Through Hole	PC Pin	20 A	1	12 AWG	22 AWG
Curtis Industries CBPW-5	5	Polyester Thermoplastic	Screws with Captive Plate	Barrier Block	9.53 mm	0.375 in	140 °C	300 VDC	2 Wall (Dual)	Flange	UL94 V-0	5	Black	Chassis Panel Through Hole	PC Pin	20 A	1	12 AWG	22 AWG
Curtis Industries CBPW-21	21	Polyester Thermoplastic	Screws with Captive Plate	Barrier Block	9.53 mm	0.375 in	140 °C	300 VDC	2 Wall (Dual)	Flange	UL94 V-0	21	Black	Chassis Panel Through Hole	PC Pin	20 A	1	12 AWG	22 AWG
Curtis Industries CBPW-1		Polyester Thermoplastic	Screws with Captive Plate	Barrier Block			140 °C	300 VDC	2 Wall (Dual)	Flange	UL94 V-0	1	Black	Chassis Panel Through Hole	PC Pin	20 A	1	12 AWG	22 AWG	1
Curtis Industries CBPW-10	10	Polyester Thermoplastic	Screws with Captive Plate	Barrier Block	9.53 mm	0.375 in	140 °C	300 VDC	2 Wall (Dual)	Flange	UL94 V-0	10	Black	Chassis Panel Through Hole	PC Pin	20 A	1	12 AWG	22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.38
		10	$ 10.90

Description

General part information

CBPW Series

12 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
