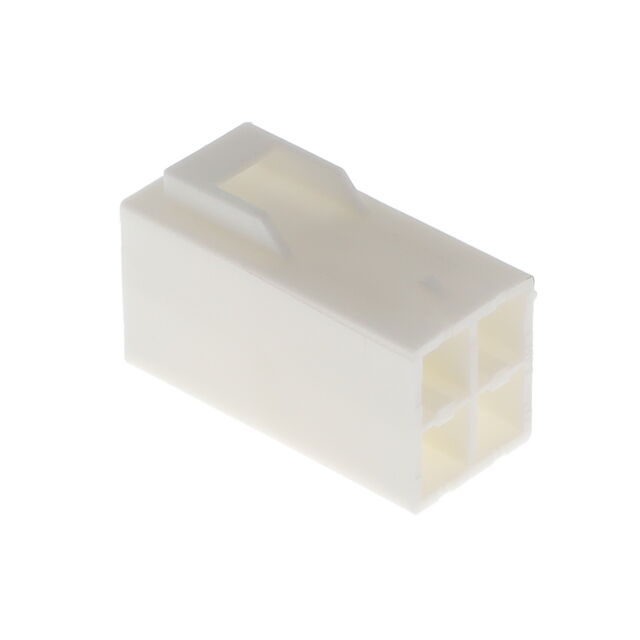

VLR-04VF

Active

JST Sales America Inc.

CONN RCPT HSG 4POS 6.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

VLR-04VF

Active

JST Sales America Inc.

CONN RCPT HSG 4POS 6.20MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VLR-04VF

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	6.2 mm
Pitch [x]	0.244 in

VLR Series

Part	Color	Contact Type	Insulation Material	Fastening Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Note	Contact Termination	Number of Positions
JST Sales America Inc. VLR-02V	White	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	1	90 °C	-25 °C	Receptacle	6.2 mm	0.244 in	Free Hanging (In-Line)	Contacts Not Included	Crimp	2
JST Sales America Inc. VLR-03V	White	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	1	90 °C	-25 °C	Receptacle	6.2 mm	0.244 in	Free Hanging (In-Line)	Contacts Not Included	Crimp
JST Sales America Inc. VLR-06V	White	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2	90 °C	-25 °C	Receptacle	6.2 mm	0.244 in	Free Hanging (In-Line)	Contacts Not Included	Crimp	6
JST Sales America Inc. VLR-02VF	White	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	1	90 °C	-25 °C	Receptacle	6.2 mm	0.244 in	Free Hanging (In-Line)	Contacts Not Included	Crimp	2
JST Sales America Inc. VLR-01VF	White	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	1	90 °C	-25 °C	Receptacle			Free Hanging (In-Line)	Contacts Not Included	Crimp	1
JST Sales America Inc. VLR-04VN	White	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2	90 °C	-25 °C	Receptacle	6.2 mm	0.244 in	Free Hanging (In-Line)	Contacts Not Included	Crimp	4
JST Sales America Inc. VLR-04V	White	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2	90 °C	-25 °C	Receptacle	6.2 mm	0.244 in	Free Hanging (In-Line)	Contacts Not Included	Crimp	4
JST Sales America Inc. VLR-04VF	White	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2	90 °C	-25 °C	Receptacle	6.2 mm	0.244 in	Free Hanging (In-Line)	Contacts Not Included	Crimp	4
JST Sales America Inc. VLR-08V	White	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2	90 °C	-25 °C	Receptacle	6.2 mm	0.244 in	Free Hanging (In-Line)	Contacts Not Included	Crimp	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.55
		10	$ 0.48
		25	$ 0.44
		50	$ 0.42
		100	$ 0.40
		250	$ 0.36
		500	$ 0.35
		1000	$ 0.29
		2500	$ 0.26

Description

General part information

VLR Series

4 Rectangular Connectors - Housings Receptacle White 0.244" (6.20mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
