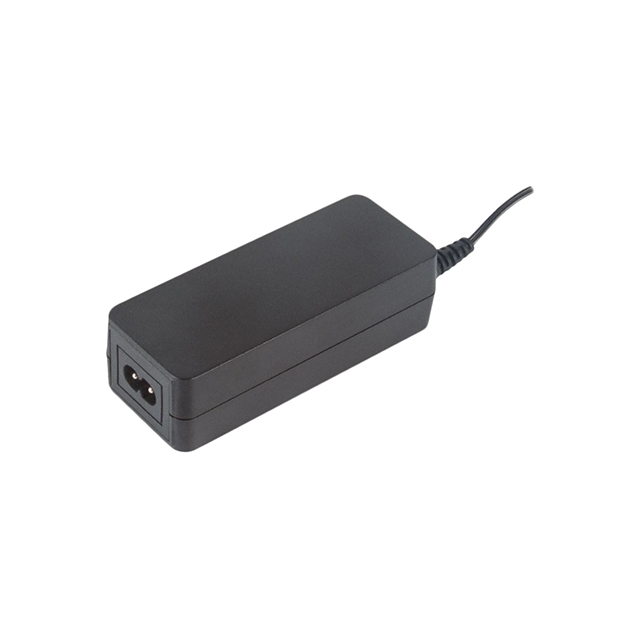

VET36US240C2-JA

Obsolete

XP POWER

AC/DC DESKTOP ADAPTER 24V 36W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC DESKTOP ADAPTER 24V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	VET36US240C2-JA

Applications	ITE (Commercial)
Approval Agency	CB
Cord Length	1.5 m
Cord Length	59 in
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [z]	12 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	115 mm
Size / Dimension [x]	4.53 "
Size / Dimension [y]	1.89 in
Size / Dimension [y]	48 mm
Size / Dimension [z]	1.28 in
Size / Dimension [z]	32.5 mm
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Power (Watts)	Input Type	Efficiency	Polarization	Output Connector	Output Connector [diameter]	Output Connector [z]	Applications	Standard Number	Form	Approval Agency	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Region Utilized	No Load Power Consumption [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output
XP POWER VET36US240C2-JA	36 W	Cord	CoC Tier 2 Level VI	Positive Center	Barrel Plug	2.1 mm 5.5 mm	12 mm	ITE (Commercial)	62368-1	Desktop (Class II)	CB	1.5 m	59 in	90 VAC	264 VAC	60 °C	0 °C	IEC 320-C8	International	75 mW	1.28 in	1.89 in	115 mm	4.53 "	32.5 mm	48 mm	24 V
XP POWER VET36US120C2-JA	36 W	Cord	CoC Tier 1 Level VI	Positive Center	Barrel Plug	2.1 mm 5.5 mm	12 mm	ITE (Commercial)	62368-1	Desktop (Class II)	CB	1.5 m	59 in	90 VAC	264 VAC	60 °C	0 °C	IEC 320-C8	International	75 mW	1.28 in	1.89 in	115 mm	4.53 "	32.5 mm	48 mm	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 36 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
