50.029 PA7035

Active

Jacob GmbH

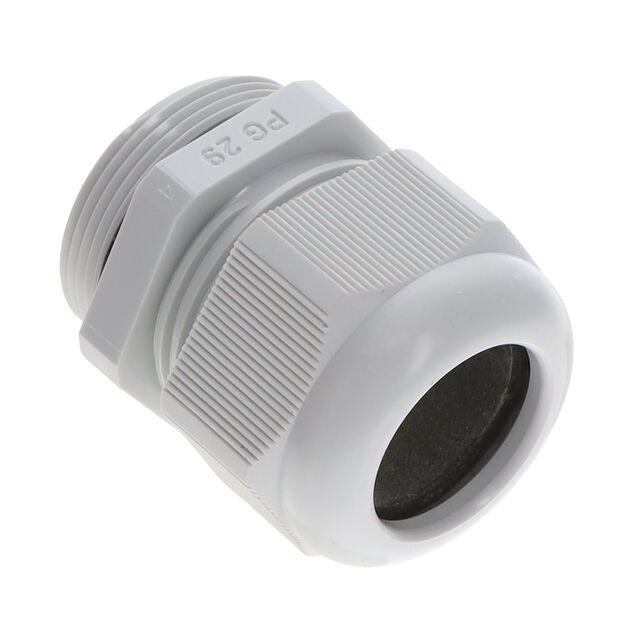

CABLE GLAND 18.01-25MM PG29

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 18.01-25MM PG29

Technical Specifications

Parameters and characteristics for this part

Specification	50.029 PA7035

Color	Gray
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max)	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm
Thread Length	0.433 in
Thread Length	11 mm
Thread Size	PG29
Type	Cable Gland

Part	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Thread Length	Thread Length	Type	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Color	Ingress Protection
Jacob GmbH 50.029 PASW15	100 °C	-40 °C	0.709 in	18.01 mm	PG29	0.591 in	15 mm	Cable Gland	Sealing Ring	0.984 in	25 mm	Black	IP68 - Dust Tight Waterproof
Jacob GmbH 50.029 PA7035	100 °C	-40 °C	0.709 in	18.01 mm	PG29	0.433 in	11 mm	Cable Gland	Sealing Ring	0.984 in	25 mm	Gray	IP68 - Dust Tight Waterproof
Jacob GmbH 50.029 PA/SW	100 °C	-40 °C	0.709 in	18.01 mm	PG29	0.433 in	11 mm	Cable Gland	Sealing Ring	0.984 in	25 mm	Black	IP68 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG29 Gray
