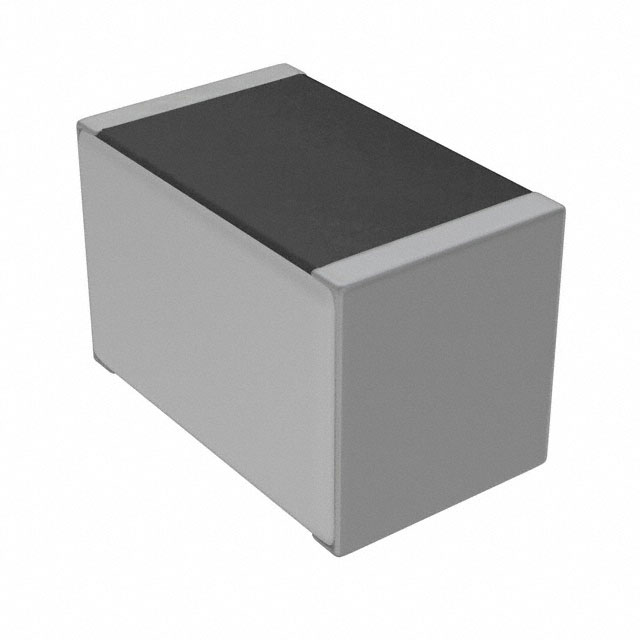

TYC0805B105KEP

Obsolete

TE Connectivity Passive Product

CAP CER 1UF 16V X7R 0805

Search across all available documentation for this part.

Obsolete

TE Connectivity Passive Product

CAP CER 1UF 16V X7R 0805

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Applications	Voltage - Rated	Package / Case	Temperature Coefficient	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Features	Thickness (Max) [Max]	Voltage - Rated [custom]	Tolerance [Max]	Tolerance [Min]
TE Connectivity Passive Product TYC0805A220JGT	MLCC Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	125 °C	22 pF	General Purpose	50 VDC	0805	C0G NP0	0.7 mm	0.028 "	5 %	Low Dissipation Factor
TE Connectivity Passive Product TYC0805B105KEP	MLCC Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	125 °C	1 µF	General Purpose		0805	X7R		1.25 mm	10 %	Low Dissipation Factor	0.049 "	16 V
TE Connectivity Passive Product TYC0805D225ZEP	MLCC Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	-30 ░C	85 °C	2.2 µF	General Purpose		0805	Y5V (F)		1.35 mm		Low Dissipation Factor	0.053 in	16 V	80 %	-20 %
TE Connectivity Passive Product TYC0805B104KGP	MLCC Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	125 °C	100000 pF	General Purpose	50 VDC	0805	X7R		1.25 mm	10 %	Low Dissipation Factor	0.049 "
TE Connectivity Passive Product TYC0805B222KGT	MLCC Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	-55 °C	125 °C	2200 pF	General Purpose	50 VDC	0805	X7R	0.9 mm	0.035 in	10 %	Low Dissipation Factor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 µF ±10% 16V Ceramic Capacitor X7R 0805 (2012 Metric)

Technical documentation and resources
