A13KR13KR26E51A

Active

JST Sales America Inc.

JUMPER 13KR-6S-P - 13KR-6S-P 2"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 13KR-6S-P - 13KR-6S-P 2"

Technical Specifications

Parameters and characteristics for this part

Part	Color	Contact Finish	Length	Length	Length	Number of Positions	Cable Termination	Number of Rows	Pitch - Connector	Pitch - Connector	Connector Type	Length	Length [x]	Length [x]	Length [x]
JST Sales America Inc. A13KR13KR26E51B	Blue Individual	Tin	50.8 mm	2 "	0.167 '	13	IDC	1	2 mm	0.079 in	Socket to Socket
JST Sales America Inc. A13KR13KR26E254B	Blue Individual	Tin	254 mm	10 in	0.833 ft	13	IDC	1	2 mm	0.079 in	Socket to Socket
JST Sales America Inc. A13KR13KR26E305A	Blue Individual	Tin	304.8 mm		1 ft	13	IDC	1	2 mm	0.079 in	Socket to Socket Reversed
JST Sales America Inc. A13KR13KR26E254A	Blue Individual	Tin	254 mm	10 in	0.833 ft	13	IDC	1	2 mm	0.079 in	Socket to Socket Reversed
JST Sales America Inc. A13KR13KR26E152A	Blue Individual	Tin	152.4 mm	6 "		13	IDC	1	2 mm	0.079 in	Socket to Socket Reversed	0.5 '
JST Sales America Inc. A13KR13KR26E305B	Blue Individual	Tin	304.8 mm		1 ft	13	IDC	1	2 mm	0.079 in	Socket to Socket
JST Sales America Inc. A13KR13KR26E51A	Blue Individual	Tin	50.8 mm	2 "	0.167 '	13	IDC	1	2 mm	0.079 in	Socket to Socket Reversed
JST Sales America Inc. A13KR13KR26E102A	Blue Individual	Tin				13	IDC	1	2 mm	0.079 in	Socket to Socket Reversed		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A13KR13KR26E203B	Blue Individual	Tin	203.2 mm	8 in	0.667 ft	13	IDC	1	2 mm	0.079 in	Socket to Socket
JST Sales America Inc. A13KR13KR26E203A	Blue Individual	Tin	203.2 mm	8 in	0.667 ft	13	IDC	1	2 mm	0.079 in	Socket to Socket Reversed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

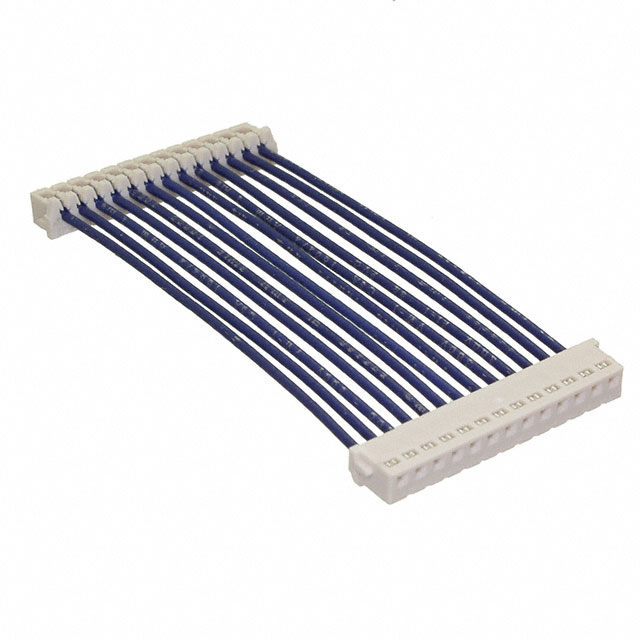

13 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.167' (50.80mm, 2.00")

Technical documentation and resources
